“Fueling Efficiency: Choosing the Right Propane Regulator for Your Forge”
Choosing the right propane regulator:

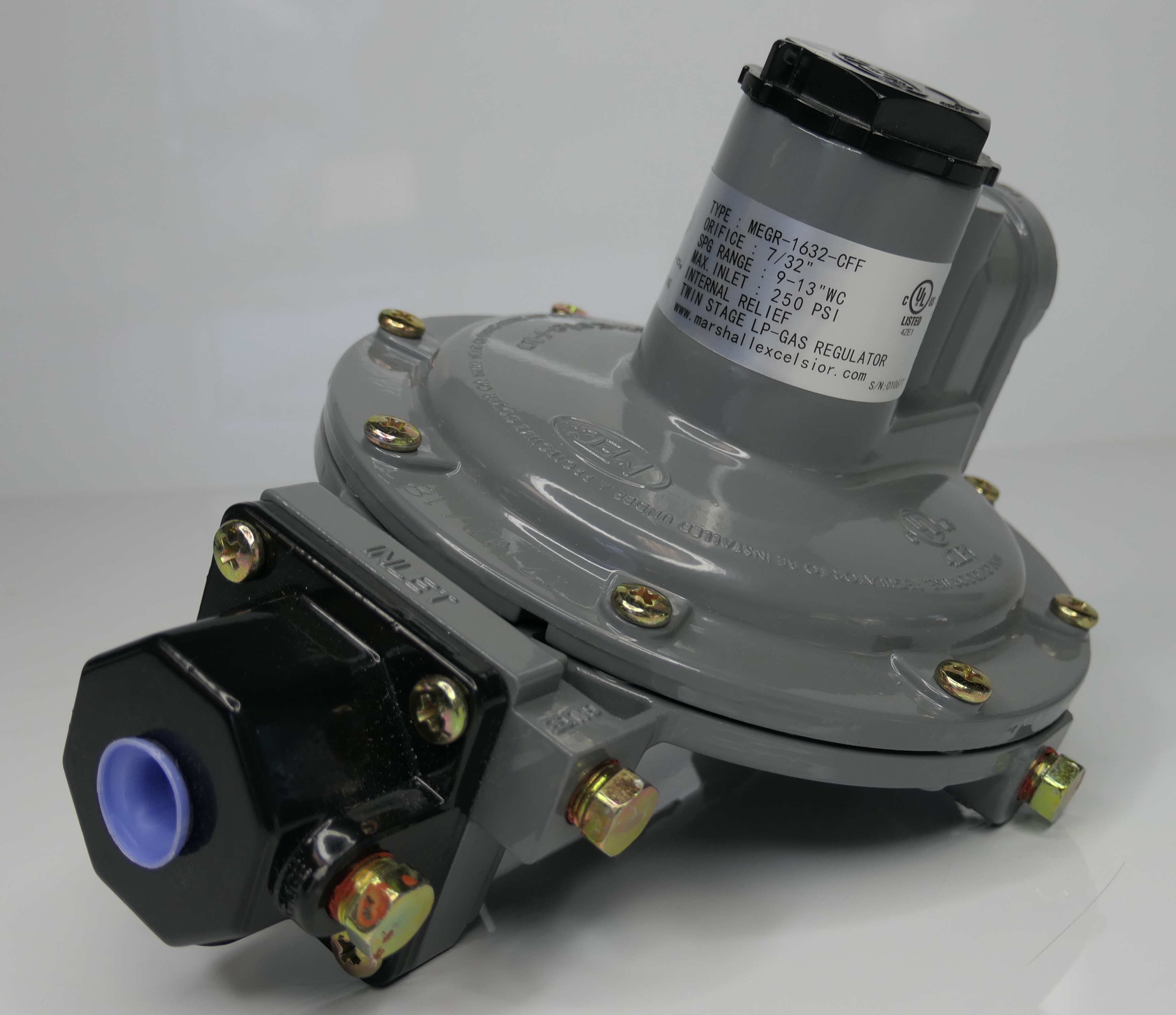

When it comes to operating a propane forge, one of the most important components to consider is the propane regulator. The regulator controls the flow of gas from the propane tank to the burner, ensuring a consistent and safe fuel supply. Here are some key factors to consider when choosing the right propane regulator for your forge.
1. Pressure rating: Propane regulators are available in various pressure ratings, typically ranging from 0-30 PSI (pounds per square inch). It’s crucial to select a regulator that matches your specific forge requirements. Higher pressure settings are generally suitable for larger forges or those with multiple burners, while smaller forges may require lower pressure settings.
2. Single-stage vs. two-stage regulators: Single-stage regulators reduce tank pressure directly down to working pressure, while two-stage regulators have an additional step that provides better control over output pressure fluctuations caused by changes in tank pressure. For most small-scale propane forging applications, a single-stage regulator should suffice. However, if you anticipate significant variations in tank temperature or altitude changes during use, a two-stage regulator might be more suitable.
3. Flow capacity: Consider the maximum flow rate required by your burner(s) when selecting a propane regulator. Burners have different fuel consumption rates depending on their design and size; therefore, it’s essential to choose a regulator capable of supplying enough gas volume without restricting performance.
Understanding different burner designs:
The burner design plays a critical role in determining heat efficiency and flame characteristics within your propane forge setup. There are several common types of burners used in blacksmithing forges:
1. Venturi Burner: This type of burner utilizes high-pressure gas flowing through a narrow throat area which creates low-pressure zones where air is drawn into the mix resulting in combustion at high velocity and intense heat output.
2. Ribbon Burner: Unlike venturi burners, ribbon burners utilize pre-mixed fuel and air to create a long, flat flame. They are known for their even heat distribution and are ideal for larger forging projects.
3. Atmospheric Burner: These burners rely on the natural draft created by the chimney effect to draw in air for combustion. While simple in design, they may not provide as much control over flame characteristics compared to other burner types.
4. Forced Air Burner: This type of burner incorporates a blower or fan to supply additional air into the mix, resulting in increased heat output and better temperature control. Forced air burners are highly efficient but require an external power source.
Each burner design has its advantages and disadvantages, so it’s important to select one that aligns with your specific forging needs and budget constraints.
Troubleshooting common ignition issues:
Ignition problems can be frustrating when trying to start your propane forge. Here are some common issues you might encounter along with troubleshooting tips:
1. Insufficient gas flow: If there is no flame or very weak ignition, check if the propane tank is empty or turned off. Ensure that all valves leading up to the burner are fully open and free from blockages.
2. Clogged burner ports: Over time, debris or rust particles can accumulate in the burner ports, obstructing fuel flow and causing ignition issues. Clean out any obstructions using compressed air or a small wire brush.
3. Faulty igniter: Check if the igniter electrode is properly aligned with the gas ports and if it’s generating sparks when activated. Replace worn-out electrodes if necessary.
4. Inadequate ventilation: Poor ventilation can lead to incomplete combustion, resulting in difficulty starting or sustaining a flame within the forge chamber. Make sure your forge area has sufficient fresh airflow and consider installing exhaust fans or venting systems if needed.
5. Incorrect fuel-to-air ratio: A lean mixture (too much air) can cause unstable flames or frequent extinguishing, while a rich mixture (too much fuel) can produce sooty, yellow flames. Adjust the air intake and gas flow to achieve a balanced flame.
Remember, safety should always be your top priority when troubleshooting ignition issues. If unsure or uncomfortable with any aspect of the process, consult a professional before attempting repairs.
Exploring alternative fuel options for propane forges:
While propane is the most commonly used fuel for blacksmithing forges due to its availability and convenience, there are alternative fuels worth considering:
1. Natural gas: Many propane burners can be converted to run on natural gas by swapping out the orifice and adjusting the air-to-fuel ratio accordingly. Natural gas offers similar heat output but may require different regulators and piping setups.
2. Coal/coke: Traditional solid fuels like coal or coke provide intense heat and are favored by some blacksmiths for their ability to reach high temperatures quickly. However, they require specialized equipment such as a coal forge and involve more manual labor compared to propane.
3. Waste oil: Some blacksmiths have successfully experimented with waste oil burners in their forges, utilizing used motor oil or vegetable oils as an energy source. This option requires careful design considerations to ensure safe combustion without excessive smoke or odors.
Before switching to an alternative fuel source, research local regulations regarding emissions and safety guidelines. Additionally, consider factors such as cost, availability, ease of use, and environmental impact when making your decision.
Maximizing heat efficiency in a propane forge:
Efficient heat utilization is crucial in maximizing productivity while minimizing fuel consumption in a propane forge setup. Here are some tips for optimizing heat efficiency:
1. Insulation: Adequate insulation within the forge chamber helps retain heat generated by burners rather than allowing it to escape into the surrounding environment. Common insulation materials include ceramic fiber blanket/board
