Forging Ahead: Unveiling the Differences Between Closed Die and Open Die Drop Forging
Differences between Closed Die and Open Die Drop Forging
Forging is a centuries-old metalworking process that involves shaping and manipulating metal through the application of heat, pressure, and repeated blows. It is widely used in various industries, including automotive, aerospace, construction, and manufacturing. Two common types of forging processes are closed die drop forging and open die drop forging. While both methods involve shaping metal through forceful impact, there are distinct differences between the two techniques.

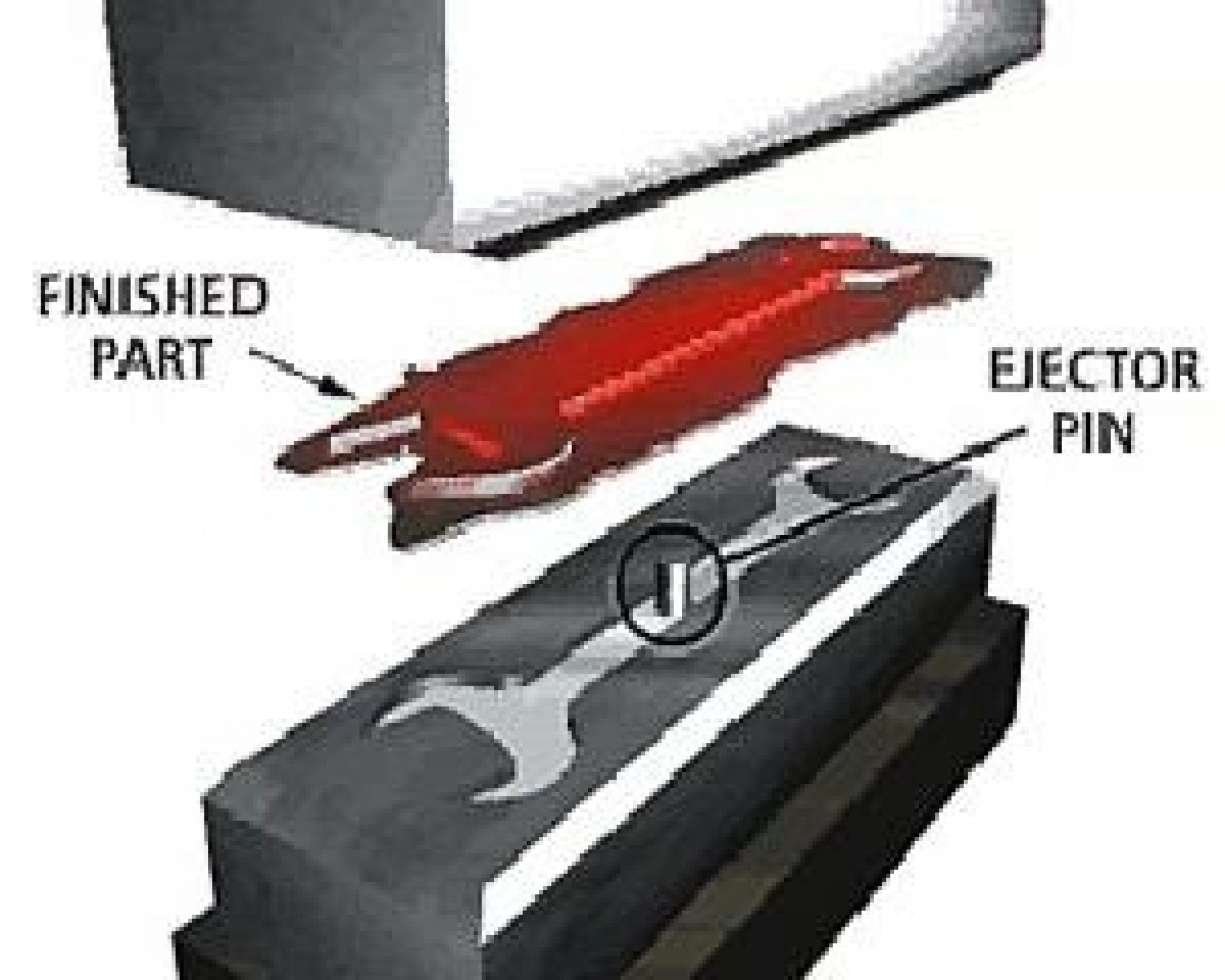

Closed Die Drop Forging:
Closed die drop forging, also known as impression-die forging or precision forging, is a highly controlled process that produces intricate and complex shapes with high accuracy. In this method, two or more dies (also called tooling) are used to shape the workpiece by applying intense compressive forces.
The closed die drop forging process begins with a preheated billet or ingot being placed between the upper and lower dies. The upper die descends rapidly onto the material while simultaneously transferring energy to it. This generates extreme pressure on the workpiece’s surface area, causing it to deform plastically into the desired shape.
One key characteristic of closed die drop forging is its ability to produce net-shaped or near-net-shaped components with minimal material waste. By exerting control over every aspect of the forming process – such as temperature management, energy transfer, and tool design – manufacturers can achieve precise dimensions and superior mechanical properties in their forgings.
Additionally, closed die drop forgings exhibit excellent structural integrity due to their refined internal grain structure resulting from deformation under high pressure. This makes them highly reliable for critical applications where strength matters most.
Open Die Drop Forging:
In contrast to closed die drop forging’s precision-oriented approach, open die drop forging relies on simpler tools without fully enclosing the workpiece during shaping. Also known as freehand or smith hammer forgings, this technique involves using flat-faced dies or anvils that allow deformation to occur on multiple sides of the material simultaneously.
The open die drop forging process begins with a heated workpiece placed on an anvil. The blacksmith then uses a hammer or other power-driven tools to repeatedly strike the metal, gradually shaping it into the desired form. While open die forgings do not achieve the same level of dimensional accuracy as closed die forgings, they offer unique advantages in terms of flexibility and size limitations.
Open die drop forging is commonly used for manufacturing large components such as shafts, bars, cylinders, discs, and rings. These forgings often serve as raw materials for further machining or additional processes like heat treatment.
One notable advantage of open die drop forging is its ability to accommodate various shapes and sizes without requiring complex tooling or dies. This makes it more cost-effective for producing low-volume parts or prototypes that do not justify the investment in custom tooling required for closed die processes.
Comparing Closed Die vs. Open Die Drop Forging:
1. Complexity and Design Flexibility:
Closed die drop forging offers superior control over shape complexity due to its precise dies that allow intricate details and close tolerances to be achieved accurately. Open die drop forging is better suited for simpler shapes with less precision requirements but excels at creating larger-sized components.
2. Material Usage:
Closed die forgings minimize material waste by closely matching the shape of the final component during deformation. Open die forgings result in more material wastage due to their freehand nature where excess material needs removal after shaping.
3. Dimensional Accuracy:
Closed die forgings provide higher dimensional accuracy compared to open-die counterparts because they are designed specifically for achieving tight tolerances.
4. Grain Structure and Mechanical Properties:
Due to high-pressure deformation in closed dies, their resulting forged parts typically exhibit finer grain structure and improved mechanical properties like strength and fatigue resistance compared to open-die forgings which may have coarser grains due to less controlled deformation.
5. Tooling and Setup:
Closed die forgings require custom tooling and more intricate setup due to the need for precise dies. Open die forging requires less complex setup as it only needs an anvil or flat-faced dies, making it more suitable for smaller production runs or one-off parts.
6. Size Limitations:
Closed die drop forging is better suited for producing smaller-sized components with intricate shapes, while open-die forging can accommodate larger workpieces due to its freehand nature.
7. Cost Considerations:
Closed die drop forging typically incurs higher upfront costs due to the need for custom tooling and extensive setup processes. Open die drop forging offers a cost advantage when manufacturing larger or low-volume parts since it eliminates the expense of designing and fabricating specialized dies.
Conclusion:
Both closed die and open die drop forging methods have their distinct advantages depending on the specific requirements of a project. Closed die forgings excel in producing net-shaped components with high precision and superior mechanical properties, making them ideal for critical applications where dimensional accuracy is paramount. On the other hand, open-die forgings are more flexible in terms of shape complexity and size limitations, offering cost-effective solutions for large-sized components or low-volume production runs.
Ultimately, choosing between closed die and open-die drop forging depends on factors such as part design complexity, required tolerances, material usage efficiency, desired mechanical properties, budget constraints, and production volume considerations. By understanding these differences between closed die and open-die forging techniques, manufacturers can make informed decisions that optimize both quality outcomes and cost-effectiveness in their metalworking processes.
