“Master the Art of Riveting: 10 Techniques Every Blacksmith Should Know”
Riveting is a crucial technique in blacksmithing that allows metalworkers to join two or more pieces of metal securely. It has been used for centuries and remains an essential skill for modern-day blacksmiths. Rivets are commonly used in manufacturing, construction, and even artistic applications. In this article, we will explore ten riveting techniques that every blacksmith should master.
1. Solid Riveting:
Solid rivets are the most traditional form of riveting, dating back thousands of years. This technique involves heating a metal rod (rivet) and placing it through pre-drilled holes in the workpieces to be joined together. Once inserted, the protruding end is hammered flat to create a permanent bond between the metals. Solid rivets provide exceptional strength and durability.
The first step in solid riveting is measuring and marking precise hole locations on both workpieces so that they align perfectly when joined together. Then, using a drill press or handheld drill with an appropriate drill bit size, carefully bore matching holes through each piece.
Next, heat the rivet rod in the forge until it reaches an orange-red color (about 1800°F). Remove it from the fire using tongs and quickly place it through one hole while holding onto its head with a pair of locking pliers.
Position the second workpiece onto the exposed end of the hot rivet rod and hold it firmly against an anvil or another sturdy surface while striking its tail end with a hammer repeatedly until flat against both pieces of metal.
2. Blind Riveting:
Blind rivets, also known as pop rivets or pull-through rivets, are widely used when joining materials where access to both sides is restricted or impossible during assembly. They consist of three parts: a tubular body with flanges on one end called mandrel head; a hollow shank; and a mandrel (the nail-like stem).
To perform blind riveting, first, drill a hole into the materials to be joined. Insert the rivet into the hole using a specially designed tool called a pop riveter. When squeezed, the riveter pulls on the mandrel head while pushing against the hollow shank. This causes it to deform and expand inside the workpieces, creating a secure connection.
Blind rivets are commonly used in automotive and aerospace industries due to their ease of installation and high strength.
3. Tubular Riveting:
Tubular rivets are similar to solid rivets but consist of a hollow tube instead of a solid rod. They are typically used for applications that require both strength and lightness, such as bicycle frames or jewelry making.
To install tubular rivets, similar steps as solid riveting are followed: drilling precise holes through both pieces being joined together and heating up the tubular rivet until malleable. The heated tube is then inserted through one hole while holding onto its head with pliers or tongs before striking its tail end with a hammer until flattened against both workpieces.
4. Collar Riveting:
Collar or clinch riveting is an excellent technique for joining thin sheets of metal securely without requiring access from both sides. This method employs two-headed fasteners known as collar or clinch (split) pins.
In collar riveting, two holes corresponding to each side of the pin’s heads are drilled in separate workpieces at precisely aligned locations.
Insert one head of the split pin into one side’s hole until it protrudes slightly beyond its surface. Then place another workpiece over it and drive down hard enough with a hammer so that both halves spread apart inside each piece tightly holding them together.
This technique provides strong connections suitable for sheet metal enclosures like cabinets or boxes.
5. Upset (Peen) Riveting:
Upset or peen riveting is ideal for joining metals where aesthetics are a concern as it leaves a decorative rounded surface. It involves deforming the end of a rivet rod to create a head that holds the workpieces together.
To perform upset riveting, first, drill matching holes through the materials to be joined. Heat the rivet rod until red-hot and insert it through one hole while holding its head with pliers or tongs.
Place an appropriately sized bucking tool (usually made from hardened steel) against the tail end of the protruding rivet and strike it repeatedly with a hammer until mushroomed enough to secure both pieces firmly.
6. Flush Riveting:
Flush riveting is commonly used in aircraft construction where aerodynamics and smooth surfaces are crucial. In this technique, rivets are installed in such a way that their heads sit flush or nearly flush with the surrounding material’s surface.
The process begins by drilling matched holes through both materials being joined together. The diameter of these holes should correspond precisely to that of the chosen flush rivets.
Insert each rivet into its corresponding hole and use an appropriate tool like a flush set or dolly to shape its head so that it sits perfectly level with or just below the surrounding material’s surface without any gaps or protrusions.
7. Countersunk Riveting:
Countersunk riveting is similar to flush riveting but creates even more streamlined finishes by using countersunk (conical) holes instead of standard round ones. This technique allows for fully recessed heads, providing an entirely flat surface after completion.
To perform countersunk riveting, begin by drilling oversized holes at specific locations on both workpieces using counterbore bits designed for creating countersinks.
Next, place each chosen fastener into its respective hole and use either specially designed tools like dimple dies or custom-made punches/dies to deform their heads smoothly into conical shapes that sink completely into counterbores without leaving any raised areas visible on top surfaces.

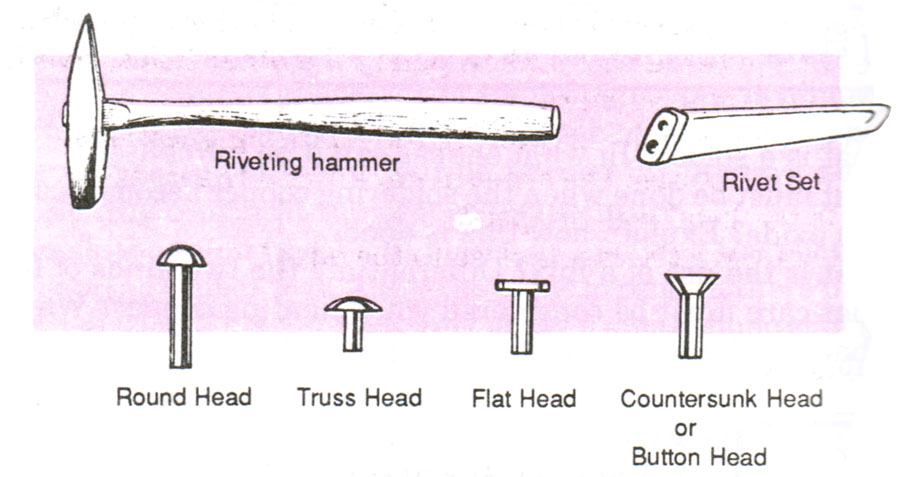

8. Rivet Heading:
Rivet heading is a technique focused solely on manipulating the shape of rivets without joining any workpieces. It allows blacksmiths to create custom fasteners with various decorative or functional heads, adding uniqueness and aesthetic appeal to their projects.
To perform rivet heading, first, heat the end of a metal rod until malleable. Then use specific tools like ball peen hammers or swage blocks with different-shaped depressions to strike and shape the heated end into desired forms such as round heads, square heads, flanged heads, or even animal shapes.
By mastering this technique, blacksmiths can enhance their creations’ visual appeal while maintaining structural integrity through well-crafted rivets.
9. Welding in Combination with Riveting:
While welding has become prevalent in modern metalworking practices, it can be effectively combined with riveting techniques to achieve superior strength and durability in specific applications.
By incorporating both methods strategically, blacksmiths can leverage the advantages of each technique: welding offers excellent bonding properties for joint areas that require maximum strength while riveting provides additional reinforcement and aesthetic benefits where necessary.
For example, when constructing large-scale structures like bridges or buildings using steel frames, welds may be used primarily for load-bearing connections while decorative elements are added through carefully executed riveted joints.
10. Decorative Riveting Techniques:
In addition to their functional purposes, rivets can also serve as design elements within artistic blacksmithing projects. Various decorative techniques allow blacksmiths to elevate their creations by incorporating visually appealing patterns or motifs using specially shaped and textured fasteners.
Some popular decorative riveting techniques include:
– Cold Chisel Texture: By striking cold chisels onto the protruding ends of installed solid or tubular rivets at different angles and intensities before flattening them against workpieces.
– Embossing: Inserting embossed discs or washers between materials being joined to create raised patterns or designs.
– Rivet Piercing: Drilling small holes into rivets after installation to form decorative perforations or patterns.
These techniques enable blacksmiths to showcase their creativity and craftsmanship by transforming seemingly mundane fasteners into eye-catching details that enhance the overall appeal of their work.
In conclusion, mastering various riveting techniques is essential for any modern blacksmith. From solid and blind riveting to collar, upset, flush, countersunk, and decorative methods, each technique offers unique advantages that can be applied in different applications. Whether it’s joining metal pieces securely, achieving streamlined finishes, or adding visual interest through creative designs – understanding these ten riveting techniques will empower blacksmiths to create remarkable objects that stand the test of time.
