Mastering Precision: The Art of Cylindrical Grinding
Cylindrical Grinding: A Comprehensive Guide to Precision Machining
Introduction:
In the world of modern blacksmithing, precision machining techniques play a vital role in achieving intricate designs and superior functionality. One such technique is cylindrical grinding, which enables craftsmen to achieve precise dimensions and exceptional surface finishes on cylindrical workpieces. In this article, we will delve into the intricacies of cylindrical grinding, exploring its applications, processes involved, and various types of grinding machines.
What is Cylindrical Grinding?

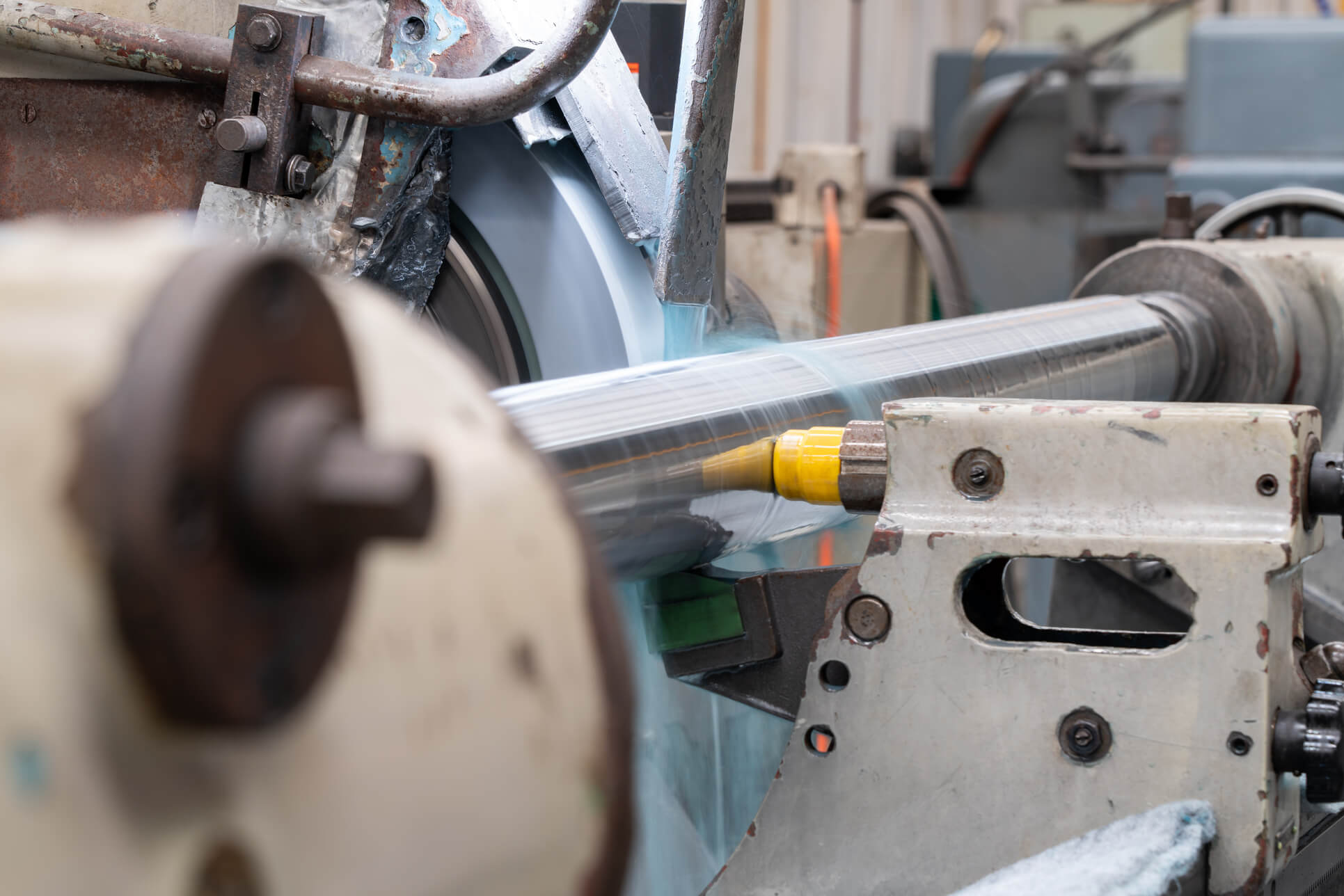

Cylindrical grinding is a type of precision machining process used to shape the exterior or interior surfaces of workpieces with a high degree of accuracy. It involves rotating the workpiece against a grinding wheel that removes material from the object’s surface until the desired dimension and finish are achieved. This process is commonly utilized for manufacturing cylinders, shafts, rods, and other components requiring tight tolerances.
Applications:
The versatility of cylindrical grinding makes it suitable for an array of industries and applications. Some common examples include:
1. Automotive Industry: Cylindrical grinding is extensively used in producing engine components like crankshafts and camshafts.
2. Aerospace Industry: Precision parts critical for aerospace applications often undergo cylindrical grinding to meet stringent specifications.
3. Medical Field: Surgical instruments such as bone drills or implants require precise dimensions achievable through cylindrical grinding.
4. Tool Manufacturing: Cutting tools like drills or end mills are produced using this method to ensure accurate geometries.
Process Overview:
Understanding the fundamental steps involved in cylindrical grinding can shed light on its effectiveness as a precision machining technique.
1. Workpiece Setup: The initial step requires securing the workpiece firmly between centers or utilizing specialized fixtures to hold irregularly shaped objects securely.
2. Wheel Selection: Choosing an appropriate abrasive wheel depends on factors such as material hardness, required finish quality, and stock removal rate.
3. Rough Grinding (Traverse Grinding): This stage involves removing excess material quickly and efficiently. The grinding wheel traverses along the length of the workpiece, removing material with each pass.
4. Finish Grinding (Plunge Grinding): After rough grinding, plunge grinding is employed to achieve the desired final dimensions and surface finish. In this stage, the wheel moves radially inward towards the workpiece axis.
5. Wheel Dressing: Over time, abrasive wheels wear out due to usage. Dressing involves restoring a wheel’s cutting ability by removing dull grains or reshaping it to a specific profile.
Types of Cylindrical Grinding Machines:
Various types of machines are used for cylindrical grinding, each designed for specific applications and workpiece geometries:
1. Plain Cylindrical Grinder: This machine features a fixed wheelhead and can perform external grinding tasks on cylindrical surfaces with great precision.
2. Universal Cylindrical Grinder: With its swiveling wheelhead and capability to grind both internal and external surfaces simultaneously, this machine offers versatility in handling complex workpieces.
3. Centerless Grinder: Unlike other machines that require centers for supporting the workpiece, centerless grinders eliminate the need for such fixtures by utilizing a regulating wheel to hold the part while it is being ground between two opposing wheels.
4. Internal Grinder: As the name suggests, an internal grinder is specifically designed for machining internal surfaces such as bores or holes within a component.
Advantages of Cylindrical Grinding:
Cylindrical grinding offers several advantages over alternative machining techniques:
1. High Precision: The process enables craftsmen to achieve tight tolerances down to microns, ensuring precise measurements needed for critical components.
2. Superior Surface Finish: By using fine-grit abrasive wheels during finishing stages, cylindrical grinding produces exceptionally smooth surface finishes.
3. Versatility: With various types of machines available, cylindrical grinding can handle different workpiece geometries ranging from small rods to large shafts.
4. Efficiency: Despite its precision, cylindrical grinding can be a relatively fast and efficient process when compared to other machining techniques.
Conclusion:
Cylindrical grinding is an essential technique in the field of precision machining. Its ability to produce accurate dimensions, excellent surface finishes, and versatility makes it indispensable across various industries. By understanding the intricacies involved in this process and utilizing appropriate machinery, modern blacksmiths can achieve superior craftsmanship while meeting stringent specifications.
