Unlocking Precision and Efficiency: The Centerless Grinding Revolution
Centerless Grinding Process: The Ultimate Guide to Precision Machining
Introduction:
In the world of precision machining, centerless grinding is a widely used process that helps manufacturers achieve high levels of accuracy and surface finish. This unique grinding method eliminates the need for centers or chucks, resulting in faster production times and reduced setup costs. In this article, we will delve into the details of centerless grinding, exploring its various components, benefits, applications, and challenges.
The Components:

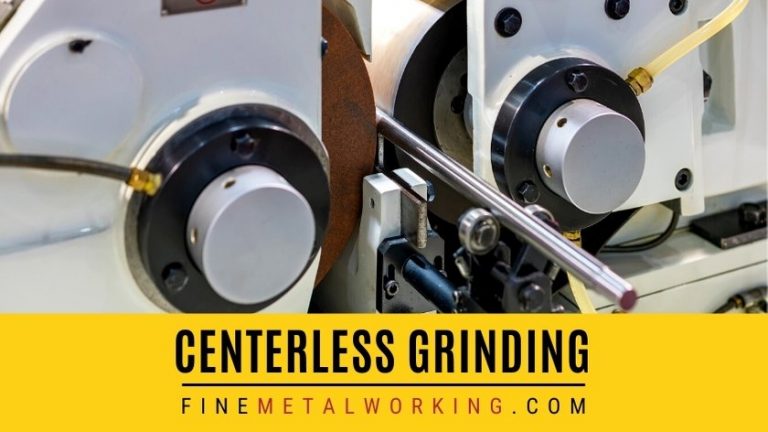

To understand how centerless grinding works, it is essential to familiarize ourselves with its key components. The process involves three main parts: the grinding wheel, the regulating wheel, and the workpiece.
1. Grinding Wheel:
The grinding wheel plays a critical role in removing material from the workpiece. It consists of abrasive particles bonded together by various materials such as vitrified bonds or resinoid bonds. Different types of abrasives can be used depending on the application requirements – commonly used ones include aluminum oxide and silicon carbide.
2. Regulating Wheel:
The regulating wheel acts as a support for the workpiece during rotation while also controlling its speed. Typically made from rubber-bonded abrasive material or simply rubberized for better frictional grip, this wheel ensures precise movement and stability during the grinding process.
3. Workpiece:
The workpiece is what undergoes machining through centerless grinding. It could be a cylindrical rod or tube that requires tight tolerances and excellent surface finish qualities.
Key Benefits:
Centerless grinding offers several advantages over traditional machining methods:
1. Increased Efficiency:
Without needing centers or chucks to hold onto the workpiece securely, setup times are significantly reduced compared to other forms of machining processes like cylindrical grinding or milling.
2. Superior Surface Finish:
Centerless grinders produce exceptional surface finishes due to their ability to remove tiny amounts of material with each pass accurately. This results in smooth surfaces without any noticeable ridges or roughness.
3. Cost-Effective:
The elimination of centers and chucks, along with faster setup times and reduced labor requirements, makes centerless grinding a cost-effective option for high-volume production runs.
Applications:
Centerless grinding finds its application in various industries where precision is paramount. Some common uses include:
1. Automotive Industry:
Centerless grinding is widely used in the automotive industry to produce components like shafts, pins, and valves with tight tolerances.
2. Aerospace Industry:
In aerospace manufacturing, centerless grinding ensures precise dimensions for critical parts such as turbine blades and fuel injection components.
3. Medical Field:
Medical devices often require intricate shapes and sizes that can be achieved through centerless grinding. Components like surgical instruments and implants benefit from this process’s accuracy and surface finish qualities.
Challenges:
While centerless grinding offers many advantages, it also presents a few challenges that manufacturers need to address:
1. Workpiece Flexibility:
The workpiece needs to have sufficient rigidity to withstand the forces during the grinding process without deforming or bending excessively. Proper support mechanisms should be implemented to ensure accurate machining results.
2. Wheel Wear:
As the abrasive particles on the grinding wheel wear down over time, maintaining consistent dimensional accuracy becomes challenging. Regular monitoring and dressing of the wheels are essential to mitigate this issue effectively.
3. Setup Complexity:
Although setup times are generally reduced compared to other machining processes, achieving optimal performance requires careful alignment of all component parameters – including wheel angles, workpiece speed, and feed rates – which can be time-consuming initially.
Conclusion:
Centerless grinding has revolutionized precision machining by providing an efficient method for achieving superior surface finishes while reducing production costs significantly. Its applications span across numerous industries where tight tolerances are essential for functional components’ successful operation.
Despite some challenges associated with workpiece flexibility, wheel wear management, and initial setup complexity,
centerless grinders continue to play a pivotal role in modern manufacturing processes. By leveraging this technique’s benefits, manufacturers can deliver high-quality products that meet the ever-increasing demands of today’s market.
