Joint Design for Brazing
Brazing is a widely used technique in the field of metalworking, where two or more metal pieces are joined together using a filler material that has a lower melting point than the base metals. It is an effective method for creating strong and durable connections, but one crucial aspect that often gets overlooked is joint design. The design of the joint plays a significant role in determining the success and longevity of the brazed connection.

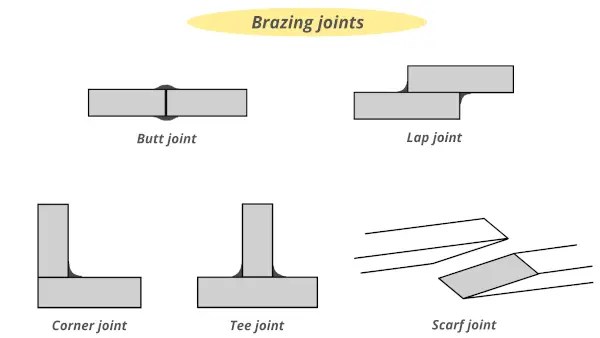

When considering joint design for brazing, there are several important factors to take into account. First and foremost is the type of joint needed for the specific application. There are various types of joints commonly used in brazing, including lap joints, butt joints, T-joints, and edge-to-edge joints. Each type has its own advantages and considerations when it comes to designing an effective joint.
One key consideration in joint design is ensuring sufficient clearance between the mating surfaces to allow proper capillary action during brazing. Capillary action refers to how effectively molten filler material can flow into narrow gaps between metal surfaces due to surface tension forces. Having appropriate clearance ensures that capillary action can occur smoothly and evenly throughout the joint.
Another critical factor in joint design is minimizing stress concentration points. During cooling after brazing, differential thermal expansion may cause stress within the joint area if not properly managed. Design features such as fillets or radii at sharp corners can help distribute stresses more evenly across the joint interface, reducing potential weak points prone to failure.
Furthermore, considering heat transfer during brazing is vital for achieving successful results. Uneven distribution of heat can lead to inconsistent bonding or even warping of components being joined together. To ensure uniform heating throughout the joint area, it’s essential to consider factors like part thicknesses, mass distribution, and placement on heating sources.
The selection of filler material also influences joint design decisions significantly. Different fillers have varying flow characteristics when melted; some may require more space to flow adequately, while others may require less. Understanding the behavior of specific filler materials and their compatibility with base metals is crucial for designing an appropriate joint that allows for effective bonding.
Additionally, the strength requirements of the brazed joint must be taken into account during joint design. Factors such as load-bearing capacity and anticipated service conditions should influence decisions regarding joint type, size, and reinforcement techniques. Reinforcement methods like adding additional material or incorporating mechanical fasteners can enhance joint strength when necessary.
Consideration should also be given to post-brazing processes such as cleaning and inspection. Joint designs that facilitate easy access for cleaning or inspection can save time and effort in maintaining or repairing brazed assemblies down the line.
Lastly, it is important to remember that joint design is not a one-size-fits-all approach; it requires careful evaluation of specific application requirements. Collaboration between designers, engineers, and brazing experts can help ensure optimal joint designs that meet both functional needs and manufacturing constraints.
In conclusion, proper joint design plays a critical role in achieving successful brazed connections. Considering factors such as clearance for capillary action, stress concentration points, heat transfer patterns, filler material selection, strength requirements, post-brazing processes, and collaboration among stakeholders are key steps towards designing effective joints for brazing applications. By paying close attention to these aspects of joint design right from the start of a project, blacksmiths can create durable connections that withstand the test of time.
