“Resistance Welding: The Modern Blacksmith’s Guide to Strong and Efficient Metalwork”
Resistance Welding Methods: A Comprehensive Guide for Modern Blacksmiths
Introduction:
Modern blacksmiths rely on a wide range of welding techniques to create intricate and durable metalwork. One such technique that has gained significant popularity in recent years is resistance welding. This method, which utilizes the heat generated from electrical resistance, offers several advantages over traditional welding techniques. In this case study, we will explore the different types of resistance welding methods commonly used by modern blacksmiths, their applications, and the benefits they offer.

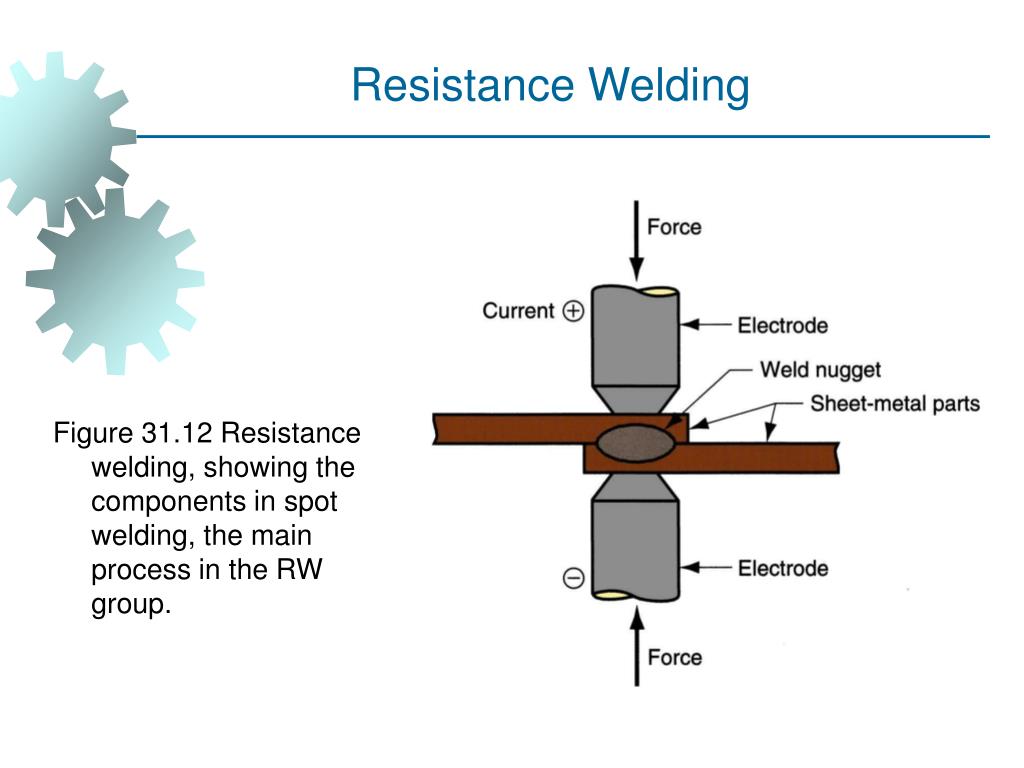

1. Spot Welding:
Spot welding is perhaps the most widely used form of resistance welding in various industries due to its versatility and simplicity. It involves applying pressure between two metal surfaces while passing an electric current through them to generate heat and fuse the metals together at specific points or “spots.” Spot welders typically consist of two electrode tips that clamp down on either side of the joint area.
The primary advantage of spot welding lies in its speed and efficiency. As it requires minimal preparation time and only heats a small localized area, it can quickly join thin sheets of metal without distorting or damaging surrounding areas. Spot welders are commonly utilized in automotive manufacturing, construction projects, sheet metal fabrication, as well as jewelry making.
2. Seam Welding:
Seam welding builds upon the principles of spot welding but extends the fusion along a continuous seam rather than discrete spots. This method is particularly useful when joining long lengths or creating hermetic seals between metallic components.
In seam welding, two rotating copper wheels with electrodes apply pressure along a moving joint line while an electric current passes through them continuously. The heat generated fuses the metals together seamlessly to form a strong bond without any gaps or overlapping joints.
Seam welders are employed extensively in industries such as automotive manufacturing (for fuel tanks), aerospace engineering (for aircraft fuselage panels), pipe production (for oil and gas pipelines), and even household appliances (such as water tanks).
3. Projection Welding:
Projection welding is ideal for joining metal components with specific shapes or protrusions, commonly referred to as projections or embossments. These projections concentrate the heat and pressure in a localized area, ensuring precise and efficient bonding.
During projection welding, electrodes press against the flat surface of one component while simultaneously making contact with the projection on the other. As the electric current passes through this narrow contact point, it generates intense heat that melts and welds the metals together. This method is widely used in industries producing wire mesh products, electrical connectors, fasteners (such as nails and screws), and even automotive assemblies.
4. Flash Butt Welding:
Flash butt welding is a resistance welding technique primarily employed for joining two ends of metal bars or rods with similar cross-sections. It creates a strong bond by heating and melting both ends simultaneously before applying pressure to forge them together.
In flash butt welding, two copper electrode heads clamp onto either end of the workpiece while an initial electric current passes through them to generate intense heat at their interface points. Once heated sufficiently, the electrodes are quickly pushed together under high pressure to create a solid joint without any additional filler material.
This method finds applications in various industries where long metal bars need to be seamlessly joined together, such as construction (for reinforcing bars), railway tracks manufacturing, shipbuilding (for structural elements), and production of pipe fittings.
Benefits of Resistance Welding:
Resistance welding offers several advantages that make it an attractive choice for modern blacksmiths:
1. Cost-effectiveness: With minimal material waste due to its localized heating process and no need for additional filler materials like solder or fluxes, resistance welding proves economical over time compared to other methods.
2. Speed: Resistance welders can complete joints rapidly due to their ability to generate high temperatures quickly within small areas without causing excessive distortion or damage surrounding regions.
3. Quality: The fusion created by resistance welding tends to be stronger and more reliable than other welding techniques, resulting in durable and long-lasting joints.
4. Versatility: Resistance welding can be applied to a wide range of metals and alloys, including steel, stainless steel, aluminum, copper, brass, and titanium.
Conclusion:
Resistance welding methods offer modern blacksmiths a practical and efficient means of joining metal components with precision and strength. Whether it’s spot welding for sheet metal fabrication or flash butt welding for reinforcing bars in construction projects, these techniques provide numerous advantages over traditional methods. By understanding the different types of resistance welding available and their applications, blacksmiths can expand their capabilities and produce high-quality metalwork that meets the demands of the modern world.
