“Mastering the Art of Drop Forging: Exploring the Power of Different Dies for Precision and Efficiency”

3. Utilizing different types of dies for specific drop forging applications

In the drop forging process, dies play a crucial role in shaping and forming the metal into the desired shape. Different types of dies are used depending on the complexity and requirements of the forged component. Here, we will explore some common types of dies utilized in drop forging applications.

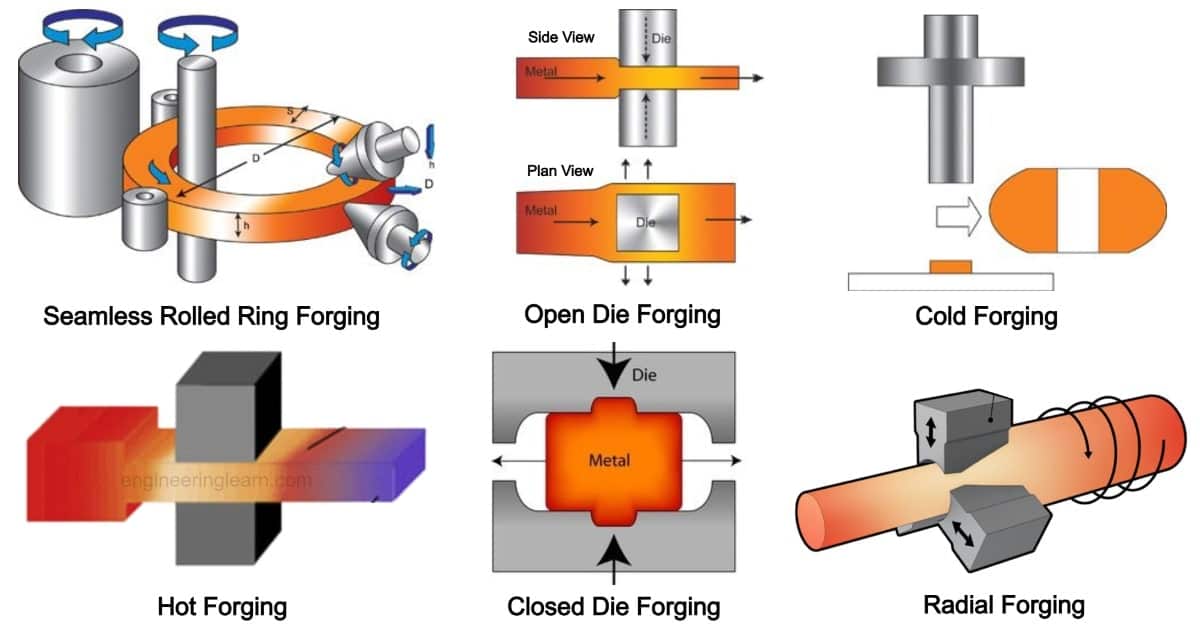

1. Open Dies: Open dies are simple and commonly used for basic shapes with minimal complexity. They consist of two halves that allow the metal to flow freely between them during the forging process. Open die forging is suitable for producing large-scale components such as shafts, rings, and bars.

2. Closed Impression Dies: Closed impression dies enclose the metal completely during forging, resulting in more precise dimensional accuracy and intricate shapes. These dies are typically made up of multiple parts that fit together to create complex cavities or impressions required for specialized components like automotive parts or aerospace components.

3. Flashless Dies: Flashless (or precision) dies are designed to eliminate flash formation during forging by tightly controlling material flow through carefully engineered cavities within the die assembly itself. This technique ensures high accuracy and surface finish while minimizing material loss.

4. Coining Dies: Coining is a special type of closed-die process used to achieve tight tolerances and excellent surface finish on small-sized components such as coins or jewelry items. Coining dies apply extreme pressure onto a small area to deform and compress the metal into its final shape.

5. Swaging Dies: Swaging involves reducing or tapering down a section of a component using swaging (reduction) dies to achieve specific dimensions or profiles along its length without changing its overall shape significantly.

6. Upset Dies: Upset forging is used when increasing thickness or diameter is needed at certain points in a component’s design, usually done by heating one end before upsetting it against an unyielding object like an anvil using specialized upset dies.

Using the right type of die for a specific drop forging application is crucial to achieving desired results in terms of accuracy, strength, and surface finish. Manufacturers and blacksmiths must carefully consider factors such as component complexity, material properties, and production volume to determine the most suitable die type for each project.
