“Mastering the Art of Torch Brazing: Versatile Techniques for Strong Metal Joints”

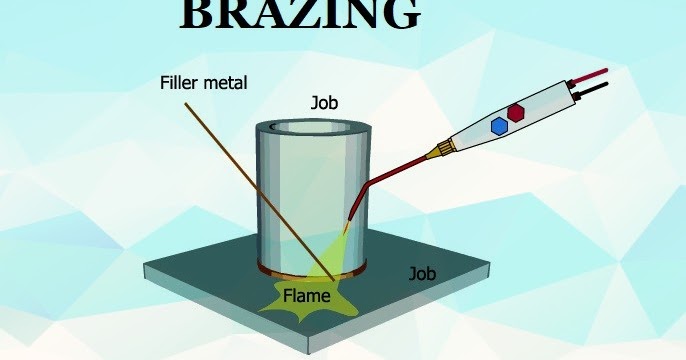

Torch brazing techniques have long been used in metalworking industries for joining various components. This method involves using a torch to heat the base metals and then introducing a filler material, usually in the form of a rod or wire, which melts and flows into the joint, creating a strong bond.

One of the advantages of torch brazing is its versatility. It can be used on a wide range of materials including steel, copper, brass, aluminum, stainless steel, and even titanium. The process is relatively simple and requires minimal equipment compared to other methods.

To achieve successful torch brazing, it is important to choose the right type of torch for the job. The most common types are oxy-acetylene and air-acetylene torches. Oxy-acetylene torches provide higher temperatures and are suitable for heavy-duty applications such as brazing thick sections or dissimilar metals. Air-acetylene torches are more portable and easier to handle but may not generate enough heat for certain applications.

Induction brazing methods offer an alternative to traditional flame-based techniques. This process utilizes electromagnetic induction to generate heat directly in the workpiece without external heating sources like flames or hot surfaces. Induction coils create alternating magnetic fields that induce eddy currents within conductive materials, causing them to heat up rapidly.

The main advantage of induction brazing is its efficiency and precision. It allows for localized heating with minimal energy loss while ensuring uniform temperature distribution across the joint area. Additionally, induction brazing eliminates concerns about open flames or excessive surface heating that could potentially damage sensitive components.

Furnace brazing processes involve placing assemblies inside a furnace where they are heated above their melting point but below their solidus temperature in order to join them together using molten filler material distributed by capillary action.

The use of furnaces provides controlled environments with consistent temperatures throughout the entire assembly. This ensures proper metallurgical bonding between components while minimizing distortion and stress. Furnace brazing is particularly well-suited for mass production due to its ability to process multiple parts simultaneously.

Silver brazing alloys are commonly used in many brazing applications due to their excellent strength, corrosion resistance, and high melting points. These alloys typically contain silver as the primary component along with other elements such as copper, zinc, or nickel.

Copper brazing finds widespread applications in industries such as HVAC (heating, ventilation, and air conditioning), refrigeration, plumbing, and electrical equipment manufacturing. Copper’s high thermal conductivity allows for efficient heat transfer during the brazing process while ensuring a strong joint between components.

Brass brazing techniques involve using brass-based filler metals to join various base metals. Brass is an alloy of copper and zinc that offers good fluidity when melted and has a lower melting point compared to some other materials like steel or stainless steel.

Aluminum brazing methods are essential for joining aluminum components effectively. Due to aluminum’s low melting point and oxidizing tendencies at elevated temperatures, specialized fluxes are often required during aluminum brazing processes to prevent oxide formation on the surface and promote wetting of the filler metal.

Stainless steel is widely used in various industries due to its excellent corrosion resistance properties. However, its unique composition poses challenges for traditional torch or furnace brazing methods. Stainless steel requires specific filler metals with higher chromium content that match the chemical composition of the base metal for successful braze joints.

Nickel-based alloy brazing is suitable for applications where high-temperature resistance is crucial. Nickel alloys exhibit excellent mechanical strength even under extreme conditions such as elevated temperatures or corrosive environments commonly found in aerospace or power generation industries.

Titanium possesses exceptional strength-to-weight ratio characteristics desirable in many advanced engineering applications such as aircraft structures or medical implants. Brazed titanium joints require careful considerations since titanium readily reacts with oxygen above certain temperatures forming brittle oxides that can compromise joint integrity.

High-temperature brazing finds applications in industries where components need to withstand extreme operating conditions. This method involves using filler metals with melting points above 450°C (842°F) and often requires specialized equipment such as vacuum or controlled atmosphere furnaces.

Vacuum brazing processes offer several advantages over traditional methods. The absence of air eliminates the possibility of oxidation, resulting in cleaner and stronger joints. Vacuum brazing can also be used for dissimilar metal joining since it does not rely on metallurgical compatibility between base metals.

Flux selection plays a critical role in effective brazing by promoting wetting and flow of filler material while preventing oxide formation on the surface. Different flux types are available depending on specific requirements, such as removing oxides, facilitating heat transfer, or reducing post-braze cleaning needs.

Joint design is crucial for achieving strong and reliable braze connections. Factors such as joint clearance, geometry, and fit-up affect capillary action, which determines how well the filler material flows into the joint during heating.

Preparing surfaces before brazing is essential to ensure proper bonding between materials. Surfaces must be thoroughly cleaned to remove contaminants like oils, grease, oxides, or scale that could interfere with the wetting action of molten filler metal.

Troubleshooting common brazing defects is an important skill for ensuring quality braze joints. Issues such as incomplete penetration, porosity, cracking, or excessive distortion can occur due to various factors including improper joint design or inadequate heating/cooling cycles.

Brazed tool fabrication combines the strength and durability of metallic tools with unique geometries made possible through brazing techniques. These tools find applications in cutting operations where high temperatures and wear resistance are required.

Heat control during the brazing process is crucial to prevent overheating or underheating that can result in weak joints or damage to sensitive components nearby. Monitoring temperature using thermocouples or non-contact infrared thermometers ensures precise control over the brazing process.

Choosing the right filler metal is crucial for achieving desired properties in the braze joint. Factors such as melting point, strength, corrosion resistance, and compatibility with base metals must be considered when selecting filler metals for specific applications.

Fluxless or self-fluxing brazing options eliminate the need for external fluxes by incorporating flux materials within the filler metal itself. These alloys offer convenience and reduce post-braze cleaning requirements while still providing effective protection against oxidation during heating.

Advancements in automated and robotic brazing systems have revolutionized industrial manufacturing processes. These systems provide precise control over heating parameters, reduce human error, increase production rates, and improve overall quality consistency.

Micro-brazing techniques are utilized for joining delicate workpieces where precise heat control is critical to avoid damage or distortion. Micro-brazing finds applications in industries such as electronics, medical devices, or jewelry manufacturing.

Repair and re-brazing of damaged components can often provide a cost-effective alternative to replacement. With proper surface preparation and selection of appropriate filler material, damaged parts can be successfully repaired using various brazing techniques.

Dissimilar metal joining through brazing enables manufacturers to create complex assemblies by combining different materials with complementary properties. Brazed dissimilar joints find applications in many industries including automotive, aerospace, electronics, or renewable energy sectors.

Environmental considerations play an increasingly important role in modern blacksmith’s shops. Responsible handling of hazardous materials like fluxes or fillers along with waste management practices ensures compliance with environmental regulations while minimizing ecological impact.
