Unleashing the Power of Drop Forging: Superior Strength, Durability, and Precision
Drop forging is a metalworking process that has been used for centuries to produce high-quality and durable components. It involves the shaping of hot metal by hammering it between two dies, creating parts with superior strength and reliability compared to other manufacturing methods. In this article, we will explore various aspects of drop forging, including types of hammers, die design, advancements in technology, materials used, heat treating techniques, precision forging applications, environmental impact, safety measures, quality control practices and more.
One of the key elements in drop forging is the type of hammer used. There are several types available depending on the size and requirements of the forged parts. The most common types include power hammers and hydraulic hammers. Power hammers use mechanical force to deliver powerful blows to shape the metal while hydraulic hammers utilize fluid pressure for controlled and consistent hammering actions. Both types have their advantages and are chosen based on factors such as part complexity, production volume, cost-effectiveness and operator skill level.
Die design plays a crucial role in determining the success of drop forging operations. The die consists of two halves that contain cavities corresponding to the desired shape of the finished part. Proper die design ensures even distribution of material flow during deformation resulting in accurate dimensions and minimal defects like cracks or voids in final products.
Advancements in drop forging technology have led to increased efficiency and accuracy in recent years. Computer-aided design (CAD) software allows for precise modeling and simulation before physical production begins which helps optimize designs for better performance. Additionally, computer numerical control (CNC) machines enable automated machining processes reducing human error while improving repeatability.
Compared to other metalworking processes like casting or machining, drop forging offers unique advantages that make it highly desirable across various industries. Forged parts exhibit exceptional strength due to grain structure refinement during deformation leading to improved mechanical properties such as higher fatigue resistance or enhanced wear characteristics compared with castings. Furthermore, the absence of porosity or internal defects in drop forged parts ensures their reliability and longevity.
Common materials used in drop forging include carbon steels, alloy steels, stainless steels, and non-ferrous metals like aluminum or copper alloys. The choice of material depends on the specific application requirements such as strength, corrosion resistance, or heat resistance. Each material has its own characteristics that need to be considered during the design and manufacturing processes.
Heat treating is an important step in drop forging to further enhance the mechanical properties of forged parts. It involves controlled heating and cooling cycles to modify the microstructure of the metal. Common techniques include annealing for softening, quenching for hardening, tempering for toughness improvement and stress relieving to reduce residual stresses.
Precision forging is a specialized form of drop forging that allows for intricate shapes with tight tolerances to be produced accurately. This technique is commonly used in industries such as aerospace or automotive where precision components are required. Precision forging offers advantages like reduced machining requirements and improved overall part performance due to optimized grain flow.
While drop forging provides numerous benefits in terms of strength and durability, it is essential to consider its environmental impact. The process consumes significant amounts of energy due to high temperatures required for metal deformation. However, advancements in technology have led to improvements in energy efficiency by integrating efficient heating systems and recycling waste heat.

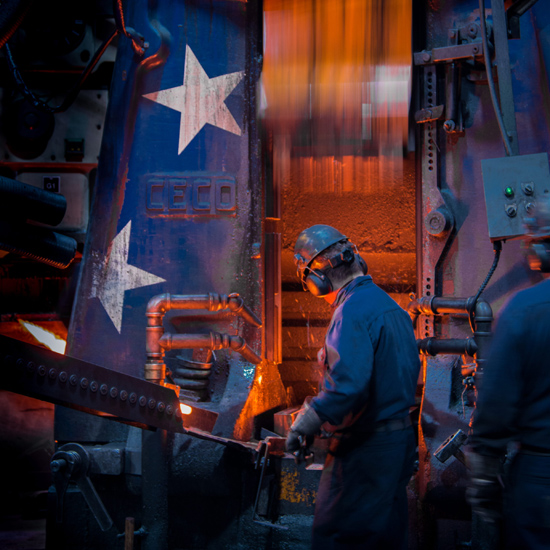

Safety measures are crucial when operating a drop forge due to the potentially hazardous nature of working with hot metal and heavy machinery. Operators must wear appropriate personal protective equipment (PPE) like gloves, goggles, or aprons while following proper procedures outlined by safety regulations.
Quality control practices are vital throughout the entire drop forging process from initial design stages through production and final inspection. Inspection methods include dimensional measurements using precision instruments like calipers or micrometers along with non-destructive testing (NDT) techniques such as ultrasonic testing or magnetic particle inspection to ensure the integrity of forged parts.
In automotive manufacturing, drop forging finds extensive application in producing critical components like connecting rods, crankshafts, or suspension parts. The high strength and reliability of drop forged parts contribute to improved vehicle performance, safety, and longevity.
The historical evolution of drop forging techniques dates back centuries when blacksmiths used manual hammers to shape metal. Over time, technological advancements have led to the development of power hammers and hydraulic presses that revolutionized the industry by enabling larger-scale production with increased accuracy and efficiency.
Modern blacksmiths face several challenges in the field of drop forging due to increasing competition from alternative manufacturing processes such as casting or machining. However, they continue to thrive by embracing innovation and applying traditional craftsmanship skills combined with modern technologies for better productivity and product quality.
Innovations in die lubrication have played a significant role in improving efficiency during drop forging operations. Proper lubrication reduces friction between the dies and the workpiece resulting in lower wear on tools, reduced energy consumption, improved surface finish on final products, and longer tool life.
The aerospace industry relies heavily on drop forgings for critical components such as landing gear systems or turbine discs. The high strength-to-weight ratio offered by forged parts ensures optimal performance while meeting stringent safety requirements imposed on aircraft components.
Closed-die drop forging is a variant where both dies fully enclose the workpiece during deformation. This technique allows for complex shapes with precise dimensions and superior mechanical properties due to controlled material flow throughout the entire process.
Drop forgings are not only valued for their functional benefits but also appreciated for their artistic value in decorative applications. Skilled craftsmen can create intricate designs incorporating unique textures or patterns that enhance aesthetics while maintaining structural integrity.
Case studies showcasing successful applications of drop forgings across various industries provide valuable insights into real-world examples where this metalworking process has made a significant impact. These case studies demonstrate how manufacturers have achieved cost savings, improved product quality, and enhanced overall performance by utilizing drop forging.
Understanding the metallurgical changes that occur during the drop-forging process is essential for optimizing part design and production parameters. The heating and deformation cycles affect grain size, shape, and orientation which ultimately influence mechanical properties like strength or toughness.
The potential of additive manufacturing combined with traditional blacksmithing techniques opens up new possibilities in terms of design freedom, rapid prototyping, and customization. Additive manufacturing allows for the creation of complex geometries that were previously challenging to achieve using conventional methods.
In conclusion, drop forging is a versatile metalworking process with numerous applications across various industries. It offers superior strength, durability, and reliability compared to other manufacturing methods. Advancements in technology have led to increased efficiency, accuracy, and sustainability in recent years. While challenges exist in terms of competition from alternative processes or environmental impact concerns, drop forging continues to thrive through innovation and craftsmanship skills.
