Unleashing the Power of Different Dies: A Guide to Drop Forging Success
Different Types of Dies Used in Drop Forging
Drop forging is a popular metalworking process that involves shaping metal by applying localized compressive forces. One critical component of drop forging is the use of dies, which are specialized tools used to shape and mold the metal into the desired form. Dies play a crucial role in determining the accuracy, quality, and efficiency of the forging process.
There are several types of dies commonly used in drop forging, each with its own unique characteristics and applications. In this article, we will explore some of the most common types: impression dies, open dies, closed dies, combination dies, and extrusion dies.
1. Impression Dies:
Impression dies are among the most widely used types in drop forging. They consist of two or more matching halves that create a cavity when brought together. The shape and design of these cavities determine the final shape of the forged part. Impression die forgings can be either simple or complex depending on the intricacy required.
One significant advantage of using impression dies is their ability to produce high precision parts with consistent dimensions repeatedly. This makes them ideal for manufacturing components like gears and shafts where accuracy is paramount.
2. Open Dies:
Open dies are another type commonly employed in drop forging processes. Unlike impression dies that enclose the entire workpiece completely, open die forgings involve shaping metal between flat or slightly curved surfaces without fully enclosing it within a cavity.
Open die forgings allow for greater flexibility as they can be adjusted during production to achieve different shapes and sizes quickly. They also enable faster cooling rates due to increased surface exposure compared to impression die forgings.

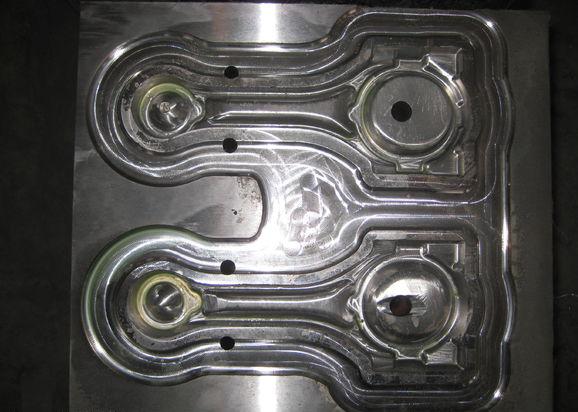

3. Closed Dies:
Closed die forgings involve shaping metal between two mating halves under extreme pressure until they take on a predetermined shape defined by these halves’ contours. Closed die forgings are often referred to as “impression” or “precision” forgings due to their ability to create complex, high-precision parts.
Closed die forgings are commonly used in the automotive, aerospace, and energy industries. Their advantages include excellent material utilization, improved mechanical properties due to grain flow alignment, and reduced machining requirements.
4. Combination Dies:
Combination dies combine the features of both open and closed dies. They have a cavity like impression dies but also allow for some deformation without completely enclosing the workpiece like open dies. This combination offers a balance between precision and flexibility during drop forging.
Combination dies are often used when producing parts with varying cross-sections or irregular shapes that require specific areas to be tightly controlled while allowing others to deform more freely. Examples of components made using combination dies include crankshafts and connecting rods.
5. Extrusion Dies:
Extrusion is a specialized form of drop forging that involves forcing metal through an opening in a die to create long-shaped forgings such as rods or tubes. Extrusion dies typically consist of multiple segments that form the desired shape when brought together.
Extrusion can be performed at room temperature (cold extrusion) or at elevated temperatures (hot extrusion). Cold extrusion is preferred for materials with high strength and low ductility, while hot extrusion is suitable for materials that need to be shaped at higher temperatures for better malleability.
In conclusion, choosing the right type of die is crucial for achieving accurate, precise, and high-quality forged parts in drop forging processes. Whether it’s impression dies for intricate designs or open/closed/combination/extrusion dies for specific applications, understanding their characteristics allows blacksmiths and manufacturers to optimize their production processes efficiently.
By selecting appropriate dies based on factors such as complexity requirements, material properties, production volumes, and cost considerations, modern blacksmiths can deliver superior products across various industries while maximizing efficiency and profitability in their forging operations.
