Unleashing the Power of Ferrite: Boosting Performance and Efficiency in High-Frequency Applications
Ferrite in High-Frequency Applications: Enhancing Performance and Efficiency
When it comes to high-frequency applications, ferrite is an indispensable material that plays a crucial role in enhancing performance and efficiency. With its unique electromagnetic properties, ferrite has become a favorite choice for modern blacksmiths working on projects involving radio frequency (RF) devices, transformers, inductors, and antennas.
One of the primary reasons why ferrite is highly regarded in high-frequency applications is its ability to suppress unwanted electromagnetic interference (EMI). Ferrite cores are commonly used in transformers and inductors due to their exceptional magnetic permeability characteristics. This property enables them to efficiently absorb and dissipate EMI energy, resulting in improved signal integrity and reduced noise levels.
Moreover, ferrites offer excellent resistance against eddy currents. When alternating current flows through conductive materials such as copper or aluminum windings of transformers and inductors, eddy currents can be induced. These eddy currents generate heat which causes power losses and reduces the overall efficiency of the device. By incorporating ferrite cores into these components, the circulating currents are minimized due to their high electrical resistivity.
In addition to EMI suppression and reducing power losses caused by eddy currents, ferrites provide another critical advantage—high magnetic saturation levels. This characteristic allows them to store a significant amount of magnetic field energy before reaching saturation point—a quality often required for effective operation at higher frequencies.
Another noteworthy feature of ferrites is their ability to exhibit low insertion loss. Insertion loss refers to the reduction of signal strength as it passes through a component or medium. In RF devices like filters or circulators where minimal signal attenuation is desired across various frequencies, utilizing ferrite materials helps maintain efficient transmission without significant degradation.
Furthermore, ferrites possess remarkable temperature stability properties compared to other magnetic materials such as iron or steel cores. The Curie temperature—the point at which ferromagnetic materials lose their magnetic properties—of ferrites is significantly higher. This advantage allows them to operate at elevated temperatures without experiencing demagnetization, making them ideal for high-frequency applications that involve extreme thermal conditions.

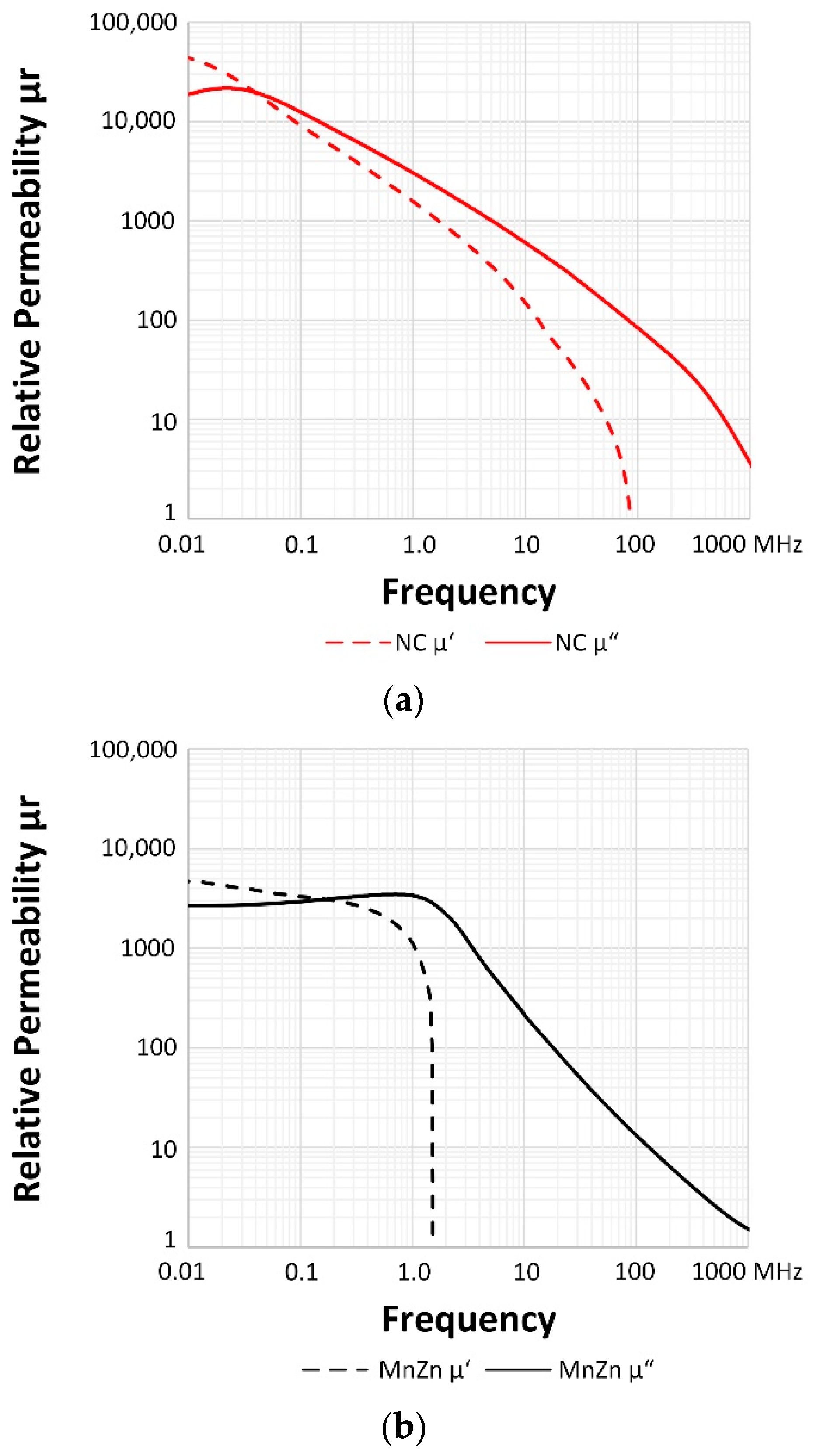

Notably, the frequency response of ferrite cores in RF devices can be tailored by selecting specific compositions and shapes. The ability to customize the permeability and loss characteristics of ferrite materials enables engineers and blacksmiths to design components with precise electrical properties, ensuring optimal performance in various applications.
To conclude, ferrite has proven its worth in high-frequency applications as an excellent material choice due to its ability to suppress EMI, reduce power losses caused by eddy currents, exhibit high magnetic saturation levels, offer low insertion loss, maintain stability across temperature variations, and enable customization based on desired frequency responses. These qualities make ferrite cores a go-to solution for modern blacksmiths looking to enhance the performance and efficiency of their RF devices, transformers, inductors, and antennas.
