Mastering the Art of Brazing: Techniques, Alloys, and Tips

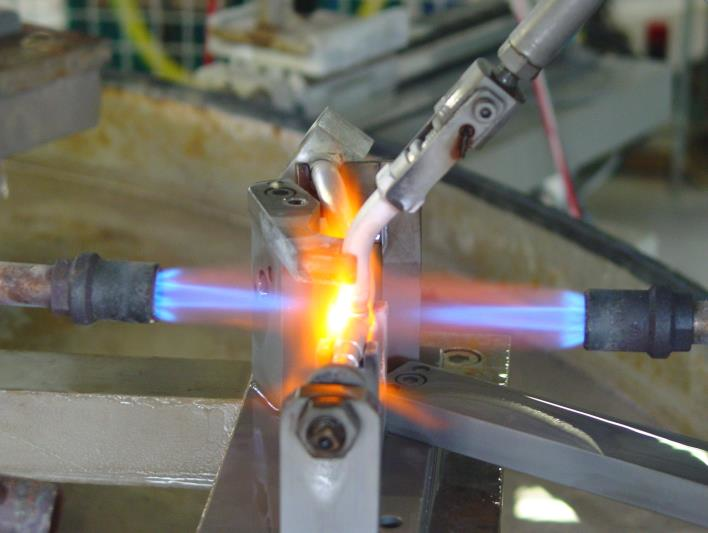

Torch brazing techniques, also known as flame brazing, involve the use of a torch to heat the base metals and filler material. This method is commonly used in small-scale applications or when precise control over heat distribution is required. The torch can be fueled by acetylene, propane, or natural gas mixed with oxygen to produce a high-temperature flame.
Induction brazing is a process that utilizes electromagnetic induction to generate heat within the workpiece itself. A high-frequency alternating current passes through a copper coil surrounding the joint area, inducing eddy currents that create localized heating. Induction brazing offers several advantages such as fast and consistent heating, minimal distortion of parts, and repeatability in production settings.
Furnace brazing involves placing the components in a furnace where they are heated above their melting temperature but below their solidus temperature. The filler metal flows into the joint by capillary action and forms a strong bond upon cooling. Furnace brazing allows for large-scale production with good control over temperature uniformity and cycle times.
Silver brazing alloys are widely used due to their excellent strength at elevated temperatures and corrosion resistance. These alloys typically contain silver as the primary component along with small amounts of copper, zinc, nickel, or tin. Silver-based alloys have low melting points compared to other braze materials which makes them suitable for joining various metals including steel, stainless steel, copper alloys, and nickel-based superalloys.
Copper brazing alloys are commonly used for joining copper-to-copper or brass-to-copper connections due to their compatibility with these materials. Copper-based filler metals usually contain phosphorus as an alloying element which provides good wetting properties on copper surfaces.
Brass brazing techniques involve using brass filler metal (copper-zinc alloy) for joining brass components or dissimilar metals like steel or cast iron. Brass has good flow characteristics during heating and exhibits good corrosion resistance after brazing.
Aluminum brazing methods are used for joining aluminum and aluminum alloys. Aluminum filler metals typically contain silicon as the main alloying element to reduce the melting point and increase fluidity during brazing. Proper cleaning and surface preparation of aluminum parts are crucial for successful brazing due to the formation of oxide layers on their surfaces.
Stainless steel brazing presents some challenges due to its high chromium content which forms a passive oxide layer at elevated temperatures. Specialized fluxes or controlled atmosphere furnaces are often required to remove this oxide layer and promote wetting between the filler metal and stainless steel surfaces.
Fluxes play a critical role in effective brazing by removing oxides, preventing re-oxidation, promoting wetting, and facilitating capillary action. The choice of flux depends on the base metals, filler material, temperature range, and application requirements. Fluxes can be in paste, liquid, or powder form.
Preparing metal surfaces before brazing is crucial for achieving strong joints. Surface cleaning techniques like degreasing, pickling (chemical removal of oxides), abrasive cleaning (mechanical removal of oxides), or ultrasonic cleaning may be employed depending on the nature of contaminants present on the metal surfaces.
Joint design considerations in brazing include selecting appropriate joint configurations such as butt joints, lap joints, T-joints, or fillet joints based on structural requirements. Joint clearances should be carefully chosen to allow proper capillary action without excessive gaps that can lead to weak joints.
In conclusion, there are various techniques available for different applications when it comes to brazing processes. Torch brazing offers precise control over heat distribution but is more suitable for small-scale operations. Induction brazing provides fast heating with minimal distortion but requires specialized equipment. Furnace brazing allows large-scale production with good temperature control but has longer cycle times. Choosing the right filler metals and fluxes based on base materials is crucial for achieving strong and reliable joints. Proper surface preparation and joint design considerations are also important factors in successful brazing operations.
