Mastering the Art of Cylindrical Grinding: A Guide for Modern Blacksmiths
Cylindrical Grinding Methods: A Comprehensive Guide for Modern Blacksmiths
Introduction:
In the world of metalworking, precision and accuracy are crucial. Whether you’re creating intricate tools or crafting ornate ironwork, achieving the desired dimensions and surface finish is paramount. This is where cylindrical grinding methods come into play. Cylindrical grinding is a versatile technique used in various industries to shape and refine cylindrical components with exceptional precision. In this comprehensive guide, we will explore different types of cylindrical grinding methods, their applications, and key considerations for modern blacksmiths.

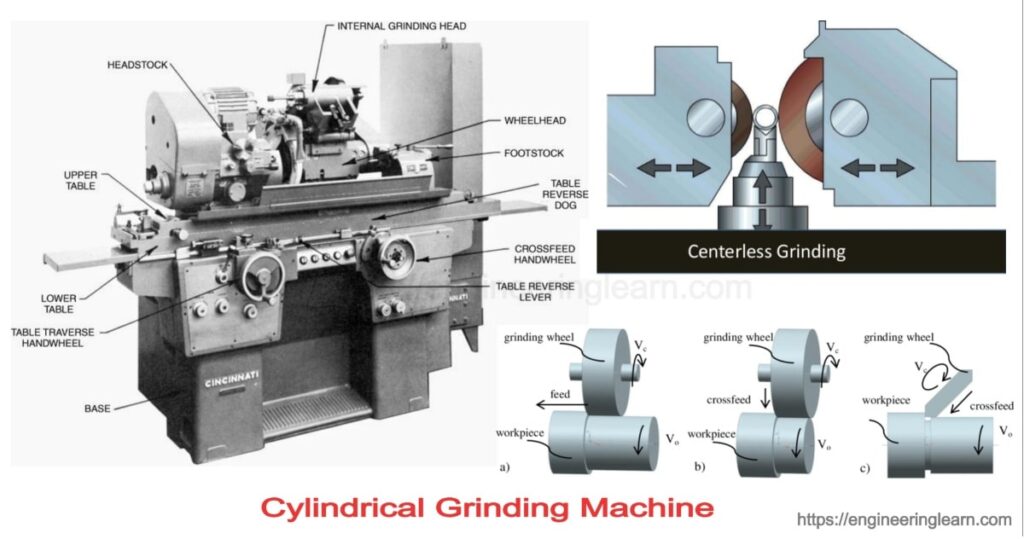

1. External Cylindrical Grinding:
External cylindrical grinding is the most common type of cylindrical grinding method employed by blacksmiths worldwide. In this process, a workpiece with a cylindrical surface (such as shafts or rods) is held in place on a rotating grinder wheel while an abrasive material removes excess material from its outer surface.
The first step in external cylindrical grinding involves setting up the workpiece on the grinder machine’s centerline axis accurately. This ensures that the rotational movement of both the workpiece and grinder wheel remains concentric throughout the operation.
Next comes selecting suitable abrasives based on factors such as required surface finish, hardness of materials being worked upon, and desired stock removal rates. Common abrasives used include aluminum oxide and silicon carbide.
During external cylindrical grinding operations, it’s essential to maintain consistent contact between the workpiece and grinder wheel to ensure uniform material removal across its entire length. This can be achieved by adjusting parameters like feed rate, depth of cut (DOC), and machine speed appropriately.
2.Internal Cylindrical Grinding:
Internal cylindrical grinding focuses on shaping internal surfaces within hollow components such as pipes or bores found in various mechanical assemblies. It allows for precise finishing touches required for smooth assembly operations or enhancing functionality through close tolerances.
To perform internal cylindrical grinding effectively, specialized machines equipped with small diameter wheels are used. These machines enable blacksmiths to work on intricate internal geometries with utmost accuracy.
One crucial aspect of internal cylindrical grinding is selecting the appropriate wheel shape and size. Depending on the specific requirements, blacksmiths can choose from straight wheels, cup wheels, or segmented wheels to achieve desired results.
Similar to external grinding, maintaining consistent contact between the wheel and workpiece during internal grinding operations is vital. This requires careful adjustment of parameters such as feed rate, DOC, and machine speed.
3.Centerless Grinding:
Centerless grinding is a unique cylindrical grinding method that eliminates the need for centers used in other techniques. Instead of supporting the workpiece with centers on both ends, centerless grinding involves holding it in place between a regulating wheel and a support blade while an abrasive wheel removes material from its outer surface.
The advantage of centerless grinding lies in its ability to process long and thin components without deflection issues caused by traditional methods. It also allows for high production rates due to continuous feeding of workpieces through the machine.
To achieve optimal results with centerless grinding, proper alignment between all three wheels (grinding wheel, regulating wheel, and support blade) is crucial. The relative positions must be adjusted carefully to ensure precise control over material removal rates and dimensional accuracy.
4.Plunge Grinding:
Plunge grinding refers to a technique where the grinder wheel plunges into the workpiece at a predetermined angle or depth. This method is commonly used for creating complex features like grooves or recesses on cylindrical surfaces found in tools or dies.
During plunge grinding operations, maintaining stability while controlling forces exerted on both the grinder wheel and workpiece becomes essential. Adequate coolant supply should also be ensured to prevent thermal damage caused by excessive heat generation during prolonged operations.
5.Precision Grinding Applications:
Cylindrical precision grinding finds applications across various industries where tight tolerances are required. Some common applications include:
– Manufacturing shafts: Cylindrical precision grinding ensures precise dimensions and smooth surface finish required for optimal performance of shafts used in machinery or automotive applications.
– Toolmaking: Cylindrical grinding is essential for creating cutting tools with intricate geometries, such as drills, end mills, or reamers.
– Aerospace industry: Precision grinding techniques are crucial in manufacturing turbine components, landing gear parts, or hydraulic cylinders found in aircraft.
– Medical devices: Cylindrical grinding enables the production of high-quality medical implants and surgical instruments with precise dimensions.
Conclusion:
Cylindrical grinding methods provide blacksmiths with a versatile set of tools to shape and refine cylindrical components accurately. Whether it’s external or internal grinding, plunge grinding, or centerless grinding, each technique offers unique advantages suited to specific applications. Understanding these methods’ intricacies empowers modern blacksmiths to create exceptional metalwork pieces that meet stringent requirements in terms of dimensional accuracy and surface finish. By mastering these techniques and employing them judiciously across various industries, the possibilities for innovation within the field of metalworking remain endless.
