“Comparing the Thermal Conductivity of Fire Bricks: Finding the Perfect Fit for Blacksmithing Needs”
Thermal Conductivity of Different Fire Bricks: A Comprehensive Comparison
When it comes to blacksmithing and working with high temperatures, having the right materials is essential. Fire bricks are a popular choice for their ability to withstand extreme heat, making them ideal for lining furnaces, kilns, and other heat-intensive applications. However, not all fire bricks are created equal in terms of thermal conductivity. In this article, we will explore the thermal conductivity of different types of fire bricks commonly used by modern blacksmiths.
The thermal conductivity of a material refers to its ability to conduct heat. It is measured in watts per meter Kelvin (W/mK), where a lower value indicates better insulation properties. The lower the thermal conductivity, the better the brick’s ability to retain heat within an enclosed space.
One widely used type of fire brick is silica refractory brick. Silica bricks have excellent resistance to high temperatures and can withstand up to 1715°C (3119°F). In terms of thermal conductivity, they typically range from 0.7 W/mK to 1 W/mK. This makes them quite efficient at retaining heat and preventing significant energy loss during blacksmithing processes.
Another common option is alumina-silicate refractory brick or fireclay brick. These bricks contain both alumina and silica components, providing good strength and resistance against chemical attacks at elevated temperatures. Alumina-silicate bricks have slightly higher thermal conductivities compared to silica refractory bricks but still offer reasonable insulation properties ranging from 1 W/mK to 2 W/mK.

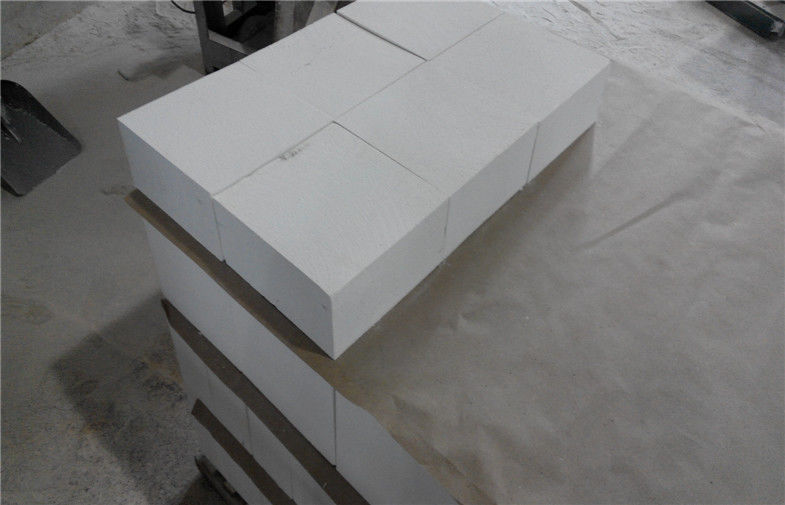

For those looking for even greater insulation capabilities, insulating firebricks (IFBs) are an excellent choice. IFBs are made from lightweight materials such as vermiculite or perlite mixed with a binder like clay or sodium silicate solution. Their unique composition gives them extremely low densities while maintaining good insulating properties with thermal conductivities as low as 0.2 W/mK.
Lastly, we have high alumina bricks, which are ideal for extreme temperature applications. These bricks contain a higher percentage of alumina (Al2O3) compared to other types, resulting in excellent mechanical strength and resistance against thermal shock. However, due to their higher density and increased thermal conductivity ranging from 1.5 W/mK to 3 W/mK, they may not be the best choice if maximum insulation is required.
In conclusion, choosing the right fire brick for your blacksmithing needs requires considering its thermal conductivity properties. Silica refractory bricks and alumina-silicate refractory bricks offer good insulation capabilities while providing durability at high temperatures. If superior insulation is desired, insulating firebricks should be chosen. On the other hand, high alumina bricks are more suitable for extreme temperature environments where maximum strength is essential but at the cost of slightly higher thermal conductivity. By understanding these differences in thermal conductivity, modern blacksmiths can make informed decisions when selecting the appropriate fire brick for their specific applications.
