Mastering the Art of Forge Welding: Techniques, Tips, and Considerations

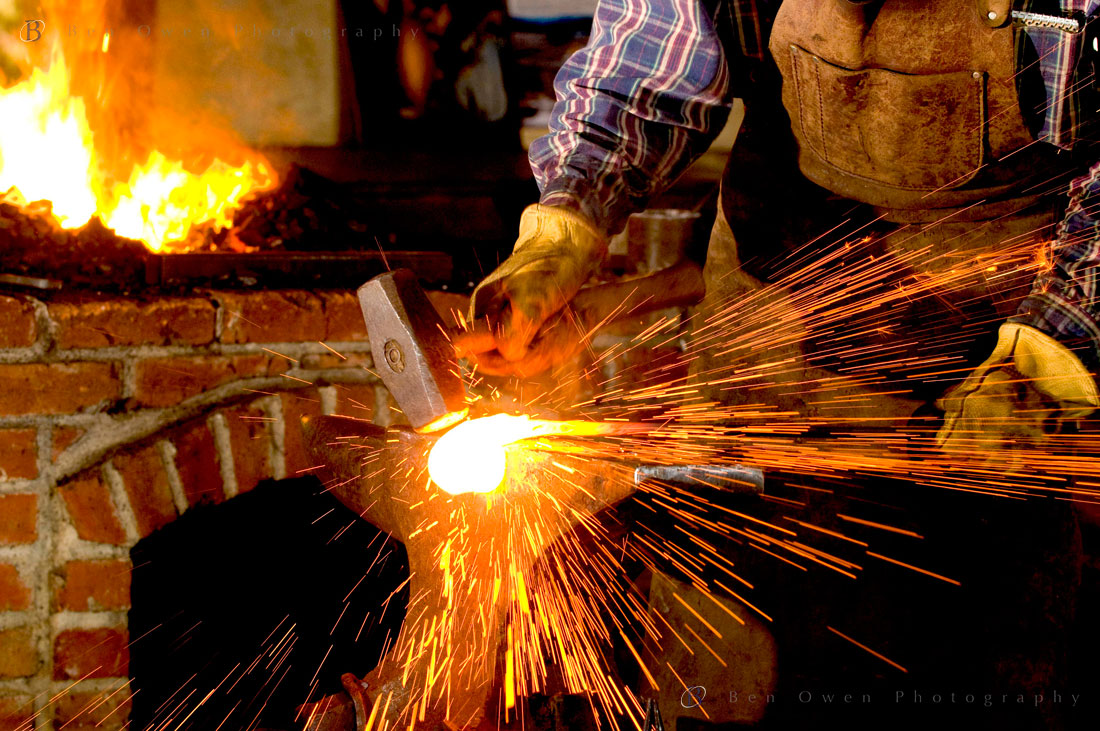

Forge welding is a fundamental technique in blacksmithing that allows two separate pieces of metal to be joined together by heat and pressure. It has been used for centuries by blacksmiths to create strong and durable connections between various types of metals. In this article, we will explore different aspects of forge welding, including fluxes, types of joints, welding dissimilar metals, techniques for thin materials, and specific considerations for welding stainless steel, non-ferrous metals, tool steels, high carbon steels, cast iron, copper and brass alloys, aluminum alloys, titanium alloys, and heat-resistant alloys.

1. Fluxes for Forge Welding

Fluxes play a crucial role in forge welding as they help remove impurities from the metal surfaces during the heating process. These impurities include oxides and other contaminants that can hinder the formation of a strong bond between the pieces being welded.

One commonly used flux is borax. Borax acts as a cleaning agent by melting at high temperatures and forming a protective layer on the metal surfaces. This layer prevents oxidation while promoting good contact between the mating surfaces.

To use borax as a flux during forge welding, it should be mixed with water to form a paste-like consistency before applying it to the joint area. As the metal heats up in the forge or furnace, borax will melt and create an active medium that helps remove impurities.

Other flux options include powdered charcoal or iron filings mixed with borax. These additives aid in absorbing any excess oxygen present during heating while also helping to maintain an even temperature distribution across the joint area.

It’s important to note that when using fluxes like borax or mixtures with additional ingredients such as powdered charcoal or iron filings; proper safety precautions must be taken due to potential health hazards associated with their usage. Always wear appropriate protective equipment like gloves and goggles when handling these substances.

2. Different Types of Forge Welding Joints

Forge welding joints differ based on the type of connection required and the shape of the pieces being joined. Some common types of forge welding joints include:

a) Scarf Joint: This joint involves beveling or tapering the ends of two metal pieces to create a larger surface area for bonding. The tapered ends are then overlapped and hammered together to form a solid joint.

b) Lap Joint: In this joint, one piece is laid flat over another, creating an overlapping configuration. Heat and pressure are applied to join the overlapping sections.

c) Butt Joint: A butt joint occurs when two flat surfaces meet end-to-end without any overlap. It often requires additional processes like chamfering or V-grooving to increase contact between the mating surfaces.

d) Corner Joint: This type of joint is used when joining two perpendicular metal pieces at their corners. The edges are usually heated and brought together with force to achieve fusion.

e) T-Joint: A T-joint is formed when one piece overlaps another in a T-shape configuration. It can be challenging as it requires careful alignment during heating and hammering.

The choice of which joint to use depends on factors such as the intended application, thickness of materials, and desired strength of the final weld.

3. Forge Welding with Dissimilar Metals

Forge welding dissimilar metals can be more challenging than working with similar metals due to differences in thermal conductivity, melting points, and composition. However, with proper techniques and considerations, it is still possible to achieve successful welds between different types of metals.

One important aspect is selecting compatible metals that have similar melting points or can form intermetallic compounds during heating. For example, steel can be forge welded to copper by introducing an intermediate layer of brass between them since brass contains both copper and zinc elements that aid in bonding these dissimilar materials together.

Another technique used for forge welding dissimilar metals is the use of explosive welding. This method involves creating a controlled explosion between the two metals, causing them to bond together at an atomic level. While this technique is more complex and requires specialized equipment, it can be effective for joining metals that are difficult to weld by conventional means.

4. Techniques for Forge Welding Thin Materials

Forge welding thin materials requires careful control of heat and pressure to avoid warping or distorting the metal being welded. Here are some techniques that can help achieve successful welds on thin materials:

a) Preheating: Preheating the thin pieces before welding helps reduce thermal shock and minimizes distortion during heating and hammering.

b) Tack Welding: When working with very thin materials, using small tack welds at specific intervals along the joint line can provide additional support during the forge welding process.

c) Light Hammer Blows: Using lighter hammer blows with a softer-faced hammer can help prevent excessive deformation while still achieving proper fusion between layers.

d) Controlled Cooling: After completing the forge weld, allow the welded piece to cool slowly to room temperature in a controlled manner. Rapid cooling can lead to stress buildup and potential cracking in thin materials.

5. Forge Welding Stainless Steel

Forge welding stainless steel requires precise temperature control due to its high chromium content, which makes it prone to oxidation when heated. It is essential to maintain an oxygen-free environment by using appropriate fluxes such as borax or a specialized stainless steel flux designed specifically for this purpose.

Another consideration when forge welding stainless steel is selecting compatible filler rods or wires with similar chemical compositions. These fillers aid in achieving proper fusion while maintaining corrosion resistance properties throughout the joint area.

6. Forge Welding Non-Ferrous Metals

Non-ferrous metals such as copper, brass, aluminum, and titanium require different approaches compared to ferrous metals like iron and steel due to their lower melting points and unique metallurgical properties.

When forge welding non-ferrous metals, it is crucial to use fluxes specifically designed for these materials. For example, a flux containing zinc chloride can be used for brass and copper alloys, while aluminum requires specialized fluxes like potassium aluminum fluoride.

Additionally, non-ferrous metals tend to conduct heat more rapidly than ferrous metals. Therefore, it’s important to closely monitor the temperature during heating and adjust the pressure accordingly to avoid overheating or melting of the metal being welded.

7. Forge Welding Tool Steels

Tool steels are commonly used in blacksmithing due to their high hardness and wear resistance properties. However, they can present challenges when it comes to forge welding due to their specific alloy compositions.

To successfully forge weld tool steels, preheating is often necessary before bringing them up to welding temperature. Preheating helps reduce the risk of cracking by minimizing thermal stress during heating and hammering stages.

Using appropriate fluxes like borax or commercial products specifically formulated for tool steel welding helps remove impurities from the joint area and promote proper fusion between layers.

8. Forge Welding High Carbon Steels

High carbon steels contain higher amounts of carbon compared to other steels which contribute to their increased hardness and strength characteristics. However, high carbon content also makes them more prone to cracking during forge welding if not properly handled.

To prevent cracking when forge welding high carbon steels, preheating is essential as it reduces thermal stress caused by rapid heating or cooling cycles. Additionally, using a low-hydrogen electrode or filler material with similar composition aids in creating secure bonds without compromising structural integrity.

9. Forge Welding Cast Iron

Forge welding cast iron presents unique challenges due to its brittle nature and susceptibility to cracking when exposed to rapid changes in temperature or excessive heat input. However, with careful consideration of techniques such as preheating and controlled cooling rates along with suitable filler materials, forge welding cast iron can be achieved successfully.

It is crucial to choose a filler material that matches the composition of the cast iron being welded. Nickel-iron electrodes or nickel-based brazing alloys are commonly used for forge welding cast iron due to their compatibility with this type of material.

10. Forge Welding Copper and Brass Alloys

Copper and brass alloys are widely used in various applications due to their excellent thermal conductivity, electrical properties, and corrosion resistance. Forge welding these materials requires proper flux selection, as mentioned earlier, along with careful temperature control during heating.

One essential consideration when forge welding copper and brass alloys is avoiding excessive heat input that can cause them to melt or lose their desirable mechanical properties. Using softer-faced hammers and lighter blows helps prevent deformation while still achieving a strong weld.

11. Forge Welding Aluminum Alloys

Aluminum alloys offer lightweight characteristics combined with good strength-to-weight ratios, making them popular in many industries. However, aluminum also poses challenges when it comes to forge welding due to its low melting point and high thermal conductivity.

To overcome these challenges, using specialized fluxes designed for aluminum alloy welding is crucial. These fluxes help remove oxides from the joint area while providing some insulation against heat loss during heating and hammering stages.

Additionally, preheating the aluminum pieces before bringing them up to forging temperatures helps reduce the risk of cracking by minimizing thermal stress caused by rapid temperature changes.

12. Forge Welding Titanium Alloys

Titanium alloys are known for their exceptional strength-to-weight ratios and corrosion resistance properties but pose unique challenges when it comes to forge welding due to their reactivity with oxygen at elevated temperatures.

When working with titanium alloys, creating an oxygen-free environment is essential by using appropriate shielding methods such as argon gas or specialized coatings like titanium hydride powder mixed with borax or sodium carbonate compounds.

Preheating titanium pieces before forging helps reduce oxygen pickup and the risk of contamination. It is also important to use specialized fluxes designed for titanium alloy welding to aid in removing impurities and promoting proper fusion.

13. Forge Welding Heat-Resistant Alloys

Heat-resistant alloys, such as those used in aerospace or high-temperature applications, require specific considerations when it comes to forge welding due to their unique metallurgical properties and temperature sensitivities.

Preheating is crucial when working with heat-resistant alloys to reduce thermal stress during heating and hammering stages. Additionally, using specialized fluxes that can withstand high temperatures is necessary for effective welds.

Furthermore, carefully controlling the cooling rate after completing the forge weld helps prevent excessive residual stresses from building up within the joint area.

In conclusion, forge welding is a versatile technique used by blacksmiths worldwide to join various metals together effectively. Understanding different aspects such as fluxes, joint types, welding dissimilar metals, techniques for thin materials, and specific considerations for different metal types allows blacksmiths to achieve strong and reliable welds tailored to their specific needs. Whether it’s stainless steel or non-ferrous metals like copper or aluminum alloys, mastering forge welding techniques opens up endless possibilities in creating intricate and durable metalwork.
