Carbon Arc Welding: A Comprehensive Guide to the Ancient Technique

Introduction:

In the world of blacksmithing, there are several welding techniques that have stood the test of time. One such technique is carbon arc welding, a method that has been used for over a century. In this article, we will explore what carbon arc welding is, how it works, its advantages and disadvantages, and some practical tips for beginners.

What is Carbon Arc Welding?

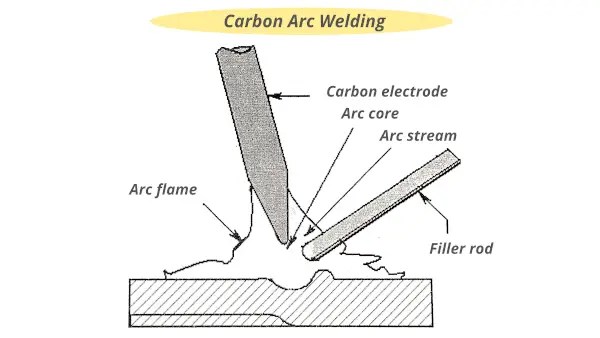

Carbon arc welding (CAW) is a type of fusion welding process that uses an electric arc between a carbon electrode and the workpiece to create a weld joint. This method was first introduced in the late 19th century as an alternative to forge welding.

The Process:

To understand how carbon arc welding works, let’s break down the process step by step:

1. Preparation: Before beginning any welding project, it’s crucial to ensure proper safety measures are in place. This includes wearing protective gear such as goggles, gloves, and fire-resistant clothing. The work area should also be clear of flammable materials.

2. Equipment Setup: To perform carbon arc welding, you’ll need a few essential tools and equipment:

– Power Source: CAW can be done using either AC or DC power sources depending on your specific needs.
– Electrode Holder: This device holds the carbon electrode firmly in place during operation.
– Carbon Electrodes: These electrodes consist of graphite or other carbon-based materials.
– Workpiece Clamp: Used to secure the workpiece while you weld.
– Safety Gear: As mentioned earlier, safety gear (goggles, gloves) must be worn throughout the process.

3. Polarity Selection: Depending on whether you’re using AC or DC power source for CAW; polarity selection becomes important:

– When using AC power source – non-discriminatory polarity
– When using DC power source – straight polarity (electrode negative)

4. Electrode Preparation: Before using the carbon electrode, it’s important to shape and sharpen it. The electrode should have a pointed tip to facilitate precise welding.

5. Arc Ignition: Once all the equipment is set up, you can ignite the arc by touching the carbon electrode against the workpiece and then quickly pulling it back about 1/16th of an inch. This creates a gap where the arc forms, generating intense heat.

6. Welding Technique: To create a weld joint, move the carbon electrode along the joint line while maintaining a consistent arc length (around 1/8th of an inch). The molten metal from both sides of the joint gets fused together as you progress along its length.

7. Post-Welding Clean-Up: After completing your welds, allow them to cool naturally before removing any slag or excess material with chisels or wire brushes.

Advantages of Carbon Arc Welding:

Now that we understand how carbon arc welding works let’s explore some advantages associated with this technique:

1. Versatility: Carbon arc welding can be used on various materials such as steel, cast iron, copper alloys, and aluminum.

2. Portability: Unlike some other welding methods that require heavy machinery or gas cylinders, CAW only requires a power source and basic tools making it ideal for on-site repairs or remote locations.

3. Cost-Effective: Carbon electrodes used in CAW are relatively inexpensive compared to other consumables like gas shielding or filler wire.

4. Heat Control: With proper technique and control over current settings, CAW allows for precise heat application which is essential when working with delicate materials or thin sections.

Disadvantages of Carbon Arc Welding:

While there are many advantages to using carbon arc welding, there are also some limitations and disadvantages worth considering:

1. Limited Joint Thicknesses: Carbon arc welding is not suitable for welding thicker joints as it may struggle to provide sufficient heat for complete fusion.

2. Flux Contamination: The carbon electrodes used in CAW do not provide any shielding gas, making the process vulnerable to atmospheric contamination and resulting in porous welds or slag inclusion.

Tips for Beginners:

If you’re new to carbon arc welding, here are some practical tips to help you get started:

1. Practice Safety First: Always prioritize safety by wearing appropriate protective gear and ensuring a safe work area.

2. Start with Simple Projects: Begin your welding journey with small and straightforward projects that allow you to practice control over the arc length and movement.

3. Focus on Arc Stability: Maintaining a stable arc is crucial for successful carbon arc welding. Experiment with different electrode angles, travel speeds, and currents until you find the optimal settings for stability.

4. Clean Workpiece Surface: Ensure that the surfaces of the workpieces are clean from rust, dirt, or grease before starting any welds. This will improve overall weld quality.

5. Learn From Experienced Welders: Seek guidance from experienced blacksmiths or professional welders who can share their knowledge and offer valuable insights.

Conclusion:

Carbon arc welding is an ancient technique that has proven its worth over time due to its versatility, portability, cost-effectiveness, and precise heat control capabilities. While it may have some limitations compared to modern techniques like TIG or MIG welding, CAW remains a valuable skill in a blacksmith’s toolkit.

Aspiring blacksmiths should start their journey with smaller projects while focusing on safety measures and perfecting their technique through practice. With dedication and patience, anyone can master this traditional yet effective method of joining metals together – just as blacksmiths have been doing for centuries!
