“Unleashing the Power of Fire Bricks: Exploring Types, Benefits, and Maintenance Tips”

Different types of refractory materials for fire bricks

Fire bricks, also known as refractory bricks, are essential components in various industrial applications that involve high temperatures. These specialized bricks are designed to withstand extreme heat and insulate against thermal conductivity. They are commonly used in kilns, furnaces, and forges, where they play a crucial role in maintaining temperature stability and protecting the surrounding structures.

There are several different types of refractory materials used in the production of fire bricks. Each type has its unique properties and advantages, making them suitable for specific applications. Let’s explore some of the most common types:

1. Fire clay: Fire clay is one of the primary materials used in manufacturing fire bricks. It is composed mainly of kaolinite clay minerals with varying amounts of other minerals like alumina and silica. Fire clay has excellent thermal resistance and can withstand temperatures up to 1,600°C (2,912°F). It is relatively inexpensive compared to other refractory materials but may have lower strength and durability.

2. High-alumina: High-alumina fire bricks contain a higher percentage of alumina (Al2O3) than fire clay bricks. This increased alumina content results in enhanced thermal stability and resistance to chemical attacks from acids or alkalis. High-alumina fire bricks can withstand temperatures above 1,800°C (3,272°F) and are ideal for use in industries such as steelmaking or glass manufacturing.

3. Silica: Silica fire bricks have a high silica (SiO2) content ranging from 95% to 97%. They offer excellent resistance to thermal shock and can withstand temperatures up to 1,650°C (3,002°F). Silica brick’s low thermal expansion coefficient makes it highly stable under rapid heating or cooling conditions. These properties make silica fire bricks well-suited for use in coke ovens or incinerators.

4. Magnesia: Magnesia fire bricks are made from magnesite, a mineral rich in magnesium oxide (MgO). These bricks have excellent resistance to alkaline slags and can withstand temperatures up to 1,800°C (3,272°F). They are commonly used in industries such as steelmaking and cement manufacturing.

5. Insulating fire bricks: Insulating fire bricks (IFBs) are lightweight refractory materials with low thermal conductivity. They are designed for applications that require high insulation properties, such as lining kilns or furnaces. IFBs can be made from various materials like vermiculite, perlite, or diatomaceous earth.

The history and evolution of fire brick manufacturing techniques

The use of refractory materials dates back thousands of years to ancient civilizations like the Egyptians and Mesopotamians who used clay-based materials to build furnaces and kilns. However, the production of modern fire bricks began during the Industrial Revolution with advancements in technology and understanding of material science.

Early methods involved hand-molding clay mixtures into brick shapes before firing them in kilns. As industrial demand grew, mechanized processes were introduced to streamline production. The invention of steam-powered machinery allowed for faster mixing, molding, and firing of fire bricks.

In the early 20th century, new manufacturing techniques emerged that improved both the quality and consistency of fire bricks. One significant advancement was the development of extrusion technology which enabled mass production while maintaining precise dimensions. Extruded fire bricks offered better strength and durability compared to traditional handmade ones.

With further advancements in material science came improvements in raw material selection and processing techniques. This led to the introduction of specialized refractory additives like alumina or silica fume which enhanced specific properties such as heat resistance or chemical stability.

Today’s manufacturing processes combine automation with advanced quality control measures to produce high-quality fire bricks consistently. Computer-controlled equipment ensures precise mixing, molding, and firing parameters, resulting in bricks with superior thermal properties and dimensional accuracy.

The impact of temperature variations on fire brick performance

Fire bricks are designed to withstand extreme temperatures, but prolonged exposure to fluctuations can affect their performance and longevity. Temperature variations can cause expansion and contraction of the refractory material, leading to cracks or even structural failure.

Rapid temperature changes, known as thermal shock, pose a significant risk to fire brick integrity. When exposed to sudden high temperatures or cooled rapidly, the outer layers of the brick expand or contract more quickly than the interior. This uneven stress distribution can lead to cracking or spalling.

To mitigate these risks, manufacturers have developed refractory materials with enhanced thermal shock resistance. These bricks undergo specialized manufacturing processes that reduce porosity and improve bonding between particles. Additionally, insulating fire bricks with low thermal conductivity help minimize heat transfer during rapid heating or cooling cycles.

Regular maintenance is also essential for preserving fire brick performance under temperature variations. Inspecting for cracks or damage allows for timely repairs before they worsen. Applying a protective coating like refractory cement can provide an additional layer of insulation against extreme temperatures.

Overall, understanding how temperature affects fire bricks is crucial in ensuring their long-term functionality and safety in high-temperature applications.

Exploring the benefits of insulating fire bricks in blacksmithing

Insulating fire bricks (IFBs) offer several advantages for blacksmiths and metalworkers due to their unique properties:

1. Thermal insulation: IFBs have low thermal conductivity compared to other types of refractory materials. This means they retain heat well while preventing excessive heat loss from furnaces or forges. As a result, less energy is required to maintain desired working temperatures.

2. Energy efficiency: The high insulation properties of IFBs contribute to improved energy efficiency in blacksmithing operations. With reduced heat loss through furnace walls or forge linings made from IFBs, less fuel needs to be burned to achieve and maintain the desired temperature. This can result in significant cost savings over time.

3. Lightweight and easy to handle: IFBs are generally lighter than traditional fire bricks, making them easier to handle during installation or repairs. Their lightweight nature also reduces the overall weight of structures, minimizing strain on supporting frames or foundations.

4. Versatility: Insulating fire bricks can be easily cut or shaped to fit specific furnace designs or forge configurations. This versatility allows for customization and optimization of heat distribution within the working space.

5. Reduced cooldown time: Due to their insulating qualities, IFBs help retain heat for longer periods even after the heat source is turned off. This results in slower cooldown rates, allowing blacksmiths more time for forging operations before needing to reheat the workspace.

6. Improved safety: The reduced external surface temperature of IFBs enhances safety by minimizing burn risks when touching or accidentally coming into contact with hot surfaces.

Fire brick maintenance and repair tips for longevity

Proper maintenance and timely repairs are essential for extending the lifespan of fire bricks and ensuring their optimal performance:

1. Regular inspection: Conduct routine inspections of fire brick linings in furnaces, kilns, or forges. Look out for cracks, spalling (flaking), or signs of damage that may compromise structural integrity.

2. Cleanliness: Keep fire bricks free from debris like coal dust, scale, ash buildup, or molten metal drippings as these materials can accelerate wear and tear through chemical reactions at high temperatures.

3. Refractory coating: Apply a protective refractory cement coating over fire brick surfaces periodically to provide an extra barrier against thermal stress and corrosion.

4. Repair minor damage promptly: Small cracks should be repaired using suitable refractory mortar as soon as they are detected before they expand further under thermal cycling conditions.

5. Temperature control: Avoid sudden extreme temperature changes whenever possible as this can induce thermal shock and lead to cracking or spalling. Gradual heating or cooling is preferable.

6. Replace severely damaged bricks: If fire bricks are extensively cracked, broken, or show signs of significant deterioration, they should be replaced promptly to maintain the integrity of the lining.

7. Proper curing: When installing new fire bricks, follow manufacturer guidelines for proper curing techniques. This allows the refractory material to reach its optimal strength and durability before exposure to high temperatures.

By following these maintenance practices and addressing issues promptly, blacksmiths can maximize the lifespan of their fire brick linings and ensure efficient operation of their furnaces or forges.

Understanding the role of fire bricks in heat retention for efficient forging

Heat retention is a critical factor in achieving efficient forging operations, and fire bricks play a vital role in this process. Fire bricks act as an insulating barrier between the heat source (such as coal or gas burners) and the workspace where metalwork takes place.

One primary function of fire bricks is to prevent excessive heat loss from the forge chamber by reducing thermal conductivity. Traditional clay-based fire bricks have low thermal conductivity characteristics that help retain heat within the working area while keeping external surfaces cooler for safety purposes.

Fire brick insulation methods can further enhance heat retention efficiency:

1. Multiple layers: Using multiple layers of fire bricks forms thicker walls with increased insulation properties compared to single-layer constructions. The air gaps between each layer create additional barriers against heat transfer.

2. Insulating materials: Combining insulating materials like ceramic fibers or vermiculite boards with standard fire brick linings can improve overall insulation performance by reducing thermal conductivity even further.

3. Reflective coatings: Applying reflective coatings on internal surfaces made from specialized refractory paints can increase radiant heat reflection back into the working area, enhancing temperature uniformity within the forge chamber.

4. Sealing openings: Ensuring tight seals around doorways or any other openings in the forge chamber prevents heat leakage and maintains a more stable working environment.

By optimizing heat retention through proper selection and installation of fire bricks, blacksmiths can achieve more efficient forging operations. This leads to reduced energy consumption, shorter heating times, and improved productivity.

Fire brick alternatives: Pros and cons of using other refractory materials

While fire bricks are commonly used in high-temperature applications due to their excellent thermal resistance properties, there are alternative refractory materials available for specific purposes. Here are some common alternatives along with their pros and cons:

1. Castable refractories: Castable refractories consist of a mixture of aggregates and binders that can be poured or troweled into place before hardening. They offer excellent flexibility in shaping complex geometries or repairing damaged areas. However, castables require longer curing times compared to fire bricks and may have higher thermal conductivity.

2. Ceramic fiber products: Ceramic fiber blankets, boards, or modules provide high-temperature insulation capabilities while being lightweight and easy to install. They are suitable for lining kilns or furnaces where weight reduction is critical but may not offer the same structural strength as fire bricks.

3. Refractory concrete: Refractory concrete is made by combining refractory aggregates with cement-like binders such as calcium aluminate cement (CAC). It offers good strength and durability while being relatively easy to work with during installation. However, it has higher thermal conductivity compared to fire clay or silica-based bricks.

4. Vermiculite/perlite insulation: Vermiculite or perlite-based insulation materials are lightweight aggregates that have excellent insulating properties but lower mechanical strength than traditional fire bricks. They are often used as backup insulation layers behind primary fire brick linings.

When considering alternative refractory materials, it’s crucial to evaluate their specific advantages against the requirements of the application at hand. Factors such as temperature range, mechanical stress levels, ease of installation, and cost should be taken into account to make an informed decision.

The science behind thermal conductivity in fire bricks

Thermal conductivity is a critical property of fire bricks that determines their ability to conduct heat. Understanding the science behind thermal conductivity helps us evaluate the performance of different refractory materials.

Thermal conductivity is a measure of how quickly heat can move through a material. It is typically expressed in watts per meter-kelvin (W/m·K). Lower values indicate better insulation properties, as less heat is transferred through the material.

Several factors influence thermal conductivity in fire bricks:

1. Porosity: The presence of air pockets or voids within the refractory matrix increases its insulating capabilities by reducing direct contact between particles. Higher porosity generally leads to lower thermal conductivity.

2. Density: Dense fire bricks with fewer pores tend to have higher thermal conductivities compared to lightweight insulating variants due to increased interparticle contact and greater atomic cohesion within the material.

3. Composition: Different types of refractory materials have varying inherent thermal conductivities due to differences in chemical composition and crystal structure. For example, high-alumina bricks generally exhibit lower thermal conductivities compared to silica-based ones.

4. Moisture content: Water has relatively high thermal conductivity compared to most solid refractories; therefore, moisture content can significantly affect overall heat transfer rates in fire brick linings.

5. Temperature gradient: Thermal conductivity may vary at different temperature ranges due to changes in molecular interactions within the material’s microstructure or phase transitions occurring under extreme conditions.

Understanding these factors allows for selecting appropriate fire brick compositions and optimizing their arrangement for specific applications where efficient heat transfer or insulation properties are required.

Exploring the various shapes and sizes of fire bricks for different applications

Fire bricks come in various shapes and sizes designed for specific applications based on their intended use:

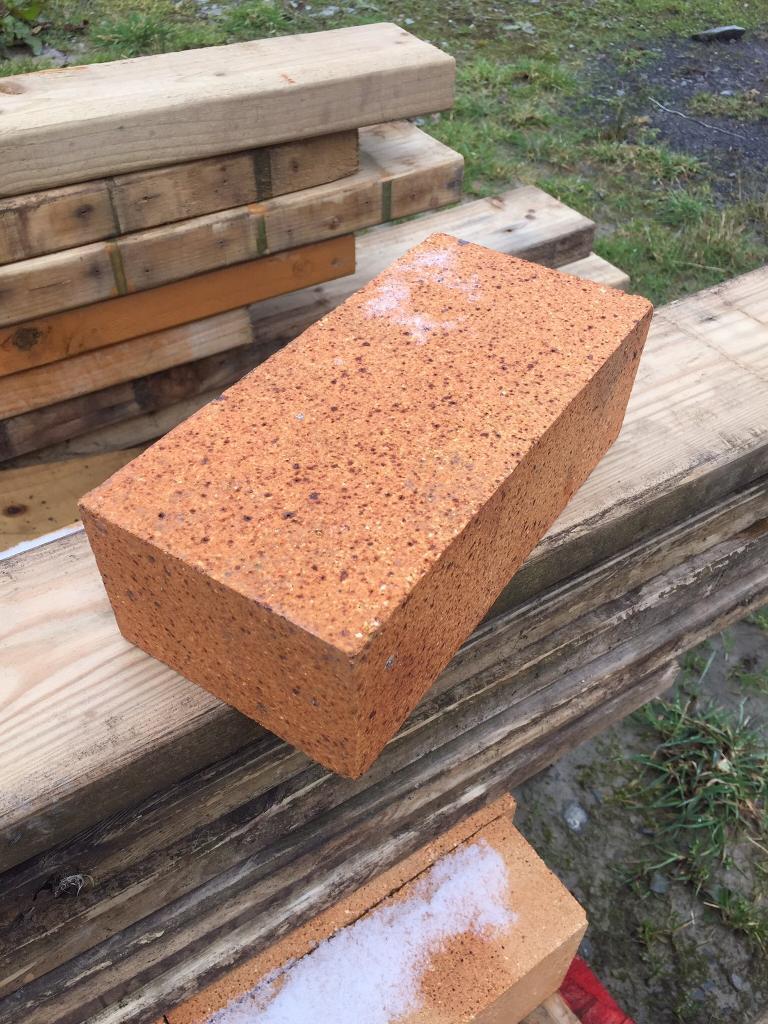

1. Standard straight shape: These rectangular-shaped fire bricks are commonly used as basic building blocks in lining furnaces, kilns, or forges. They are available in standard sizes such as 9″ x 4.5″ x 2.5″ (230mm x 115mm x 64mm) and provide a versatile option for many industrial applications.

2. Arch-shaped: Fire bricks with an arch shape are used to create curved structures like vaulted furnace ceilings or arched openings. These bricks are specially designed to fit together smoothly, forming a strong self-supporting structure.

3. Wedge-shaped: Wedge-shaped fire bricks allow for the creation of tapered walls or chimneys where the width gradually decreases towards the top. The tapering design promotes better airflow and heat distribution within the forge or furnace.

4. Herringbone pattern: In some applications, fire bricks may be cut into smaller pieces and arranged in a herringbone pattern to enhance structural stability and prevent brick movement under thermal cycling conditions.

5. Custom shapes: Depending on specific requirements, custom-shaped fire bricks can be manufactured to fit complex geometries or unique designs within specialized furnaces or equipment.

Choosing the right shape and size of fire brick depends on factors such as temperature range, mechanical stress levels, ease of installation, and compatibility with existing infrastructure.

Fire brick kilns: Design considerations and best practices

Fire brick kilns are widely used in industries such as ceramics or pottery production for firing clay objects at high temperatures while maintaining precise control over heat distribution. Here are some design considerations and best practices for constructing efficient fire brick kilns:

1. Insulation: Incorporate insulating materials between layers of fire bricks to minimize heat loss through the kiln walls. Common insulation materials include ceramic fiber blankets or boards placed behind the primary refractory linings.

2. Ventilation system: Install an appropriate ventilation system that allows for controlled airflow within the kiln chamber during firing cycles to ensure even heating throughout all areas.

3. Temperature control: Use thermocouples or other temperature monitoring devices to measure and regulate the internal temperature of the kiln accurately. This allows for fine-tuning of heat distribution and avoids overheating or underheating issues.

4. Firing chamber layout: Design the interior space of the kiln to optimize airflow patterns and ensure uniform heating of objects placed inside. Consider factors such as burner placement, shelf arrangement, and flue design for efficient heat transfer.

5. Kiln furniture: Choose suitable refractory shelves or supports made from fire bricks or specialized cordierite materials that can withstand high temperatures without warping or deforming.

6. Safety features: Incorporate safety measures like emergency shutdown systems, proper ventilation controls, and adequate insulation thickness to protect operators from excessive heat exposure during operation.

7. Maintenance access: Include appropriate openings or access points in the kiln design to allow for cleaning, maintenance, and repair work on fire brick linings when necessary.

8. Power source considerations: Determine whether a gas-fired (propane/natural gas) or electric-powered kiln is better suited for your specific needs based on availability, cost considerations, and desired firing characteristics.

By considering these design factors and implementing best practices in construction and operation, fire brick kilns can provide reliable performance with consistent firing results while maximizing energy efficiency.

The environmental impact of fire brick production and sustainable alternatives

The production of traditional clay-based fire bricks has some environmental implications due to factors such as raw material extraction, energy consumption during manufacturing processes, greenhouse gas emissions from firing kilns, waste generation, etc. However, there are sustainable alternatives being developed:

1. Recycled content: Some manufacturers incorporate recycled refractory materials into their production processes to reduce reliance on virgin raw materials. This helps minimize resource depletion while diverting waste from landfills.

2. Sustainable sourcing: Ethical sourcing practices involve selecting clay deposits that adhere to responsible mining guidelines, minimizing environmental impact during extraction.

3. Energy-efficient manufacturing: Implementing energy-saving measures and utilizing renewable energy sources for firing kilns can reduce the carbon footprint associated with fire brick production.

4. Insulating materials: Insulating fire bricks made from lightweight aggregates like vermiculite or perlite have lower environmental impacts compared to traditional clay-based bricks due to reduced material consumption and energy requirements during their manufacture.

5. Research and development: Ongoing research aims to develop innovative refractory materials using environmentally friendly binders or alternative raw materials that offer similar performance characteristics as traditional fire bricks while reducing ecological footprints.

It is important for manufacturers and consumers alike to prioritize sustainability in the selection, use, and disposal of refractory materials throughout their lifecycle.

Fire brick safety precautions for a blacksmithing workshop

When working with high temperatures in a blacksmithing workshop, it’s crucial to follow proper safety precautions when handling fire bricks:

1. Personal protective equipment (PPE): Always wear appropriate PPE such as heat-resistant gloves, safety glasses, long-sleeved clothing, and closed-toe shoes to protect yourself from burns or other injuries.

2. Heat-resistant surfaces: Place fire bricks on stable heat-resistant surfaces or stands designed specifically for this purpose. Avoid setting them directly on combustible materials like wood or plastic that may melt or catch fire under high temperatures.

3. Proper lifting techniques: Use proper lifting techniques when moving heavy fire bricks to prevent back strains or other injuries. When possible
