Harnessing the Power of Electricity: Revolutionizing Modern Blacksmithing with Induction Coil Design
Induction Coil Design: Harnessing the Power of Electricity for Modern Blacksmithing
Introduction:
In today’s modern world, blacksmithing has evolved significantly. The traditional hammer and anvil have been joined by power tools and machinery, enhancing efficiency and precision. Among these innovations, induction coil design plays a crucial role in enabling blacksmiths to harness the power of electricity for their craft. In this article, we will explore the intricacies of induction coil design, its applications in modern blacksmithing, and key considerations for creating effective coils.
Understanding Induction Coils:
An induction coil is essentially an electromagnetic device that converts electrical energy into heat using principles of electromagnetic induction. It consists of a primary winding connected to a source of alternating current (AC) and a secondary winding placed within or near the primary winding.
When AC current flows through the primary winding, it creates changing magnetic fields around it. These magnetic fields induce eddy currents in nearby conductive materials such as metals. These eddy currents generate heat due to electrical resistance – known as Joule heating – allowing precise control over temperature distribution.
Applications in Modern Blacksmithing:
1. Heat Treatment:
One significant application of induction coils in blacksmithing is heat treatment processes like annealing, hardening, tempering, or case hardening. By controlling the frequency and intensity of AC current passing through the coil’s windings, blacksmiths can achieve specific temperatures needed to alter metal properties effectively.
For example, during annealing – a process involving controlled heating and cooling – an induction coil can provide uniform heating across complex shapes without direct contact with metal surfaces. This allows for efficient stress relief while maintaining part geometry.
2. Brazing and Soldering:
Induction brazing involves joining two or more metal components using a filler material with lower melting points than the base metals being bonded together. Similarly, soldering joins components using low-temperature alloys called solders.
Induction coils are ideal for these processes due to their ability to selectively heat specific areas, achieving strong and reliable bonds. By focusing the heating precisely where it is needed, blacksmiths can minimize thermal distortion or damage to adjacent components.
3. Metal Joining:
In addition to brazing and soldering, induction coil design also finds applications in other metal joining techniques such as welding and forging. Induction welding utilizes high-frequency AC current generated by the coil to create localized heating at the joint interface, resulting in a strong bond without excessive heat affecting surrounding areas.
Similarly, induction forging employs rapidly alternating magnetic fields induced by the coil to heat metal billets or bars quickly before shaping them using mechanical force. This process enables efficient production of complex shapes with minimal material waste.
Key Considerations for Effective Coil Design:
1. Coil Material Selection:
Choosing the right material for constructing induction coils is crucial for their performance and longevity. Copper is often preferred due to its excellent electrical conductivity, low resistance losses, and high melting point. However, copper’s cost can be prohibitive in some cases; thus, alternatives like aluminum or copper-clad steel may be considered based on budget constraints and specific application requirements.

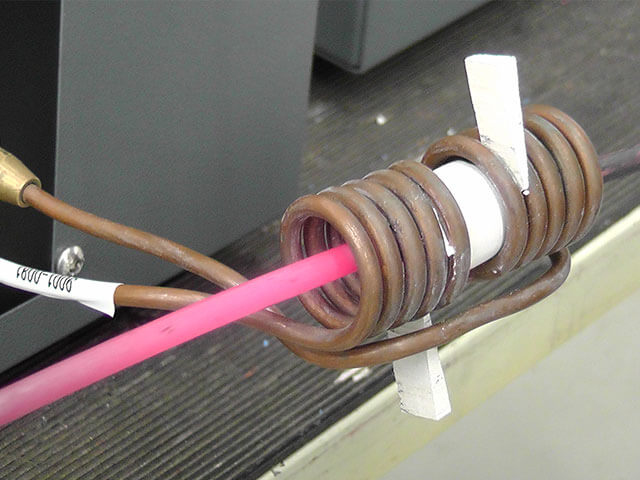

2. Coil Geometry:
The shape and size of an induction coil significantly impact its efficiency and effectiveness. Coils are typically wound into helical or solenoid configurations around a cylindrical or toroidal core made from insulating materials like ceramic or fiberglass.
The number of turns in each winding affects the magnetic field strength produced by the coil while considering factors like desired temperature range, power supply capacity, frequency limitations, and available space within blacksmithing equipment.
3. Frequency Selection:
The choice of operating frequency depends on various factors such as material properties being heated (ferromagnetic vs non-ferromagnetic), desired heating rate/control (rapid vs precise), depth of penetration required (shallow vs deep), size/shape complexity, and equipment limitations.
Low-frequency induction systems (2-10 kHz) penetrate deep into metals, making them ideal for bulk heating. Conversely, high-frequency systems (100-500 kHz) are well-suited for surface treatments or localized heating with rapid response times.
4. Cooling Systems:
Induction coils generate significant amounts of heat during operation, necessitating efficient cooling mechanisms to prevent damage and ensure prolonged coil life. Water-cooling is a common approach involving the circulation of coolant through cooling channels integrated into the coil design. Proper sizing and flow rate control of the cooling system are essential considerations to maintain safe operating temperatures.
Conclusion:
As modern blacksmithing continues to evolve, induction coil design plays an increasingly vital role in enabling precise temperature control and enhancing efficiency in various processes such as heat treatment, brazing/soldering, welding/forging, and metal joining. By understanding key considerations such as material selection, coil geometry, frequency choice, and cooling systems, blacksmiths can harness the power of electricity effectively to shape metal with precision while preserving traditional craftsmanship techniques.
