“Unveiling the Secrets of Ancient and Modern Casting Techniques in Blacksmithing”

Lost-wax casting techniques have been used for centuries in the art of blacksmithing. This ancient method allows craftsmen to create intricate and detailed designs by pouring molten metal into a wax mold, which is then melted away, leaving behind a perfect replica in metal. In this article, we will explore various casting techniques used in modern blacksmithing and their applications.

1. Lost-Wax Casting Techniques:
Lost-wax casting is one of the oldest known methods of metal casting. It involves creating a wax pattern or model that is coated with several layers of ceramic material to form a mold. The mold is heated until the wax melts and drains out, leaving an empty cavity. Molten metal is then poured into the cavity, filling it completely and taking on the shape of the original wax pattern.

This technique allows for intricate and highly detailed designs to be reproduced faithfully in metal. It is commonly used in jewelry making as well as for small-scale decorative objects such as buckles, pendants, or figurines.

2. Sand Casting for Blacksmithing Projects:
Sand casting is another widely used method in blacksmithing projects due to its simplicity and versatility. It involves creating a mold made from compacted sand mixed with clay or other bonding agents.

To begin sand casting process, the desired object’s pattern (known as “pattern”) is pressed into specially prepared sand mixture called “molding sand” which contains certain additives like clay or oil binders etc., depending upon requirements . The mold then hardens around the pattern before being removed.

Next step involves pouring molten metal directly into the hollow created by removing the pattern from hardened sand moulds; this creates an exact replica of original object but made out solid mass rather than hollow cavity because once liquid cools down enough temperature so it solidifies again while retaining its shape under atmospheric pressures applied during cooling off stage .

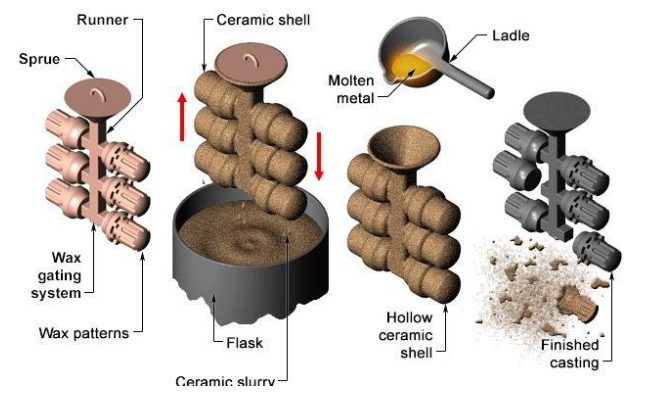

3.Investment Casting in Modern Blacksmithing:
Investment casting, also known as precision casting or lost-wax investment casting, is a highly versatile method used in modern blacksmithing. It involves creating a wax pattern that is coated with a ceramic material and then baked to harden the mold.

Once the mold has hardened, it is heated to melt and remove the wax, leaving behind an empty cavity. Molten metal is then poured into the cavity and allowed to cool and solidify. The mold is then broken away to reveal the final cast object.

Investment casting allows for great detail and complexity in designs, making it ideal for producing small components such as jewelry or intricate decorative pieces.

4. Centrifugal Casting Methods:
Centrifugal casting is a technique that utilizes centrifugal force to distribute molten metal evenly within a cylindrical mold. This method ensures uniformity of density throughout the cast object.

To perform centrifugal casting, molten metal is poured into a spinning mold while being rotated on its axis. Centrifugal force causes the metal to spread outwards along the inner surface of the mold, filling every crevice and producing a dense and solid cast object.

This method can be used for various shapes and sizes of objects but is particularly well-suited for cylindrical shapes like rings or tubes.

5. Vacuum Casting for Intricate Designs:
Vacuum casting utilizes negative pressure (vacuum) to draw molten metal into a specially designed mold. This technique eliminates any air bubbles or voids within the cast object, resulting in high-quality finished products with excellent detail reproduction.

In vacuum casting process ,a specially designed flask containing both upper & lower halves called “mold” made up from materials such as silicone rubber etc., which are capable enough withstand high temperatures required during melting down metals at elevated temperature conditions .

The desired pattern or model (known as “pattern”) placed inside one half of this flask before closing another half over top part thus forming complete sealed chamber inside which molten metal can be poured under vacuum conditions applied by creating pressure differential between atmosphere outside chamber and one inside it .

6. Spin Casting and Its Applications in Blacksmithing:
Spin casting, also known as centrifugal rubber mold casting, is a method that uses centrifugal force to distribute molten metal into a mold made from flexible rubber or silicone.

In this process, the mold is filled with molten metal and then spun rapidly on its axis. The centrifugal force pushes the metal against the inner surface of the mold, ensuring complete replication of intricate details. Once the metal has solidified, the mold is removed to reveal the finished object.

Spin casting is commonly used for producing small-scale jewelry or decorative objects where high detail reproduction is required.

7. Continuous Casting for Large-Scale Projects:
Continuous casting is a method used primarily in large-scale industrial projects where a constant supply of castings is required. It involves continuously pouring molten metal into a water-cooled mold while simultaneously extracting solidified castings from the other end.

This method allows for efficient production of long, continuous shapes such as pipes, rods, or beams with minimal waste material.

8. Shell Molding Techniques in Blacksmithing:
Shell molding combines elements of sand casting and investment casting to produce high-quality castings with fine surface finishes.

To create shell molds ,a mixture consisting binders like resin & catalysts added along fillers including sand mixed together before being heated so as harden them forming coated layer around pattern . This pattern then removed after coating dried up enough temperature whereupon another layer materials added until desired thickness achieved before pouring liquid metals inside hollow cores formed during curing period followed by final cool down stage when all components harden completely

9.Die Casting and Its Relevance to Craft:
Die casting involves forcing molten metal into reusable steel molds called dies under high pressure using hydraulic presses or machines.
