Ensuring Strong and Reliable Connections: The Importance of Welding Inspection and Quality Control

Welding Inspection and Quality Control: Ensuring Strong and Reliable Connections

Q: What is welding inspection, and why is it important?

A: Welding inspection is a crucial process that ensures the quality and integrity of welded connections. It involves examining welds for defects or imperfections that could compromise their strength and durability. By conducting thorough inspections, welders can identify any issues early on, allowing them to make necessary repairs or adjustments.

Q: What are some common welding defects?

A: There are several common defects found in welded joints. These include cracks, porosity (air pockets within the weld), incomplete fusion (lack of bonding between the base metal and filler material), lack of penetration (insufficient depth of the weld), undercutting (a groove along the edge of the joint), and misalignment. These defects can weaken the weldment’s overall structural integrity, leading to potential failure under stress.

Q: How do inspectors assess welding quality?

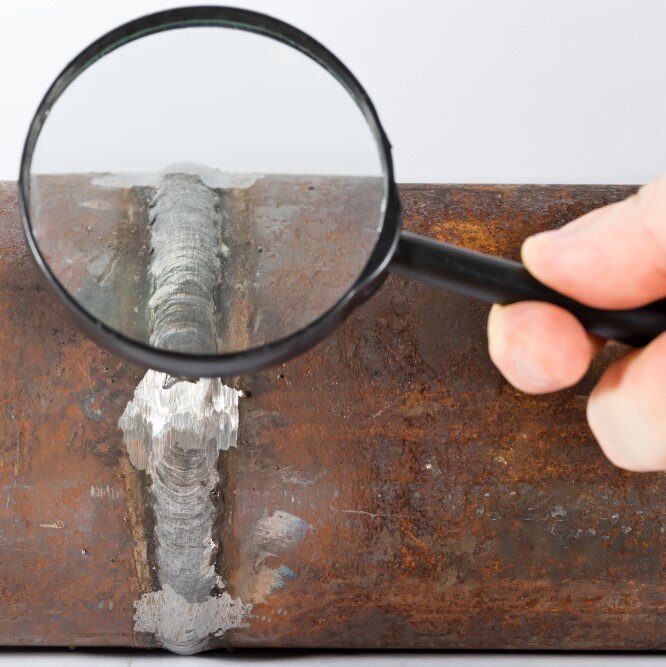

A: Inspectors use various techniques to evaluate welding quality. Visual inspection involves visually examining welds for surface irregularities such as cracks or excessive spatter. They may also perform non-destructive testing methods like ultrasonic testing, radiography, magnetic particle testing, or liquid penetrant testing to detect internal flaws not visible to the naked eye.

Q: Are there specific codes or standards followed during welding inspections?

A: Yes, several codes and standards provide guidelines for welding inspections. The most widely recognized one is AWS D1.1 – Structural Welding Code – Steel that outlines requirements for welding processes, procedures, qualifications, inspection criteria, etc., specific to steel construction projects.

Other relevant codes include ASME Boiler & Pressure Vessel Code Section VIII Division 1 for pressure vessels; API 1104 – Welding Pipelines & Related Facilities; ASME B31 Series Codes related to piping systems; ASTM E165/E165M-12 Standard Test Method for Liquid Penetrant Examination, and ASTM E709-15 Standard Guide for Magnetic Particle Testing.

Q: How can welders ensure quality control during the welding process?

A: Welders must follow proper procedures to maintain quality control. This includes using approved materials, adhering to specified welding parameters (current, voltage, travel speed), and employing suitable welding techniques. Regular calibration of equipment is essential, as is ensuring adequate training and certification for welders. Additionally, maintaining a clean work environment and properly storing consumables will help prevent contamination issues that could compromise weld quality.

In conclusion, welding inspection plays a vital role in guaranteeing the strength and reliability of welded connections. Through diligent examination of welds for defects or imperfections, inspectors can identify potential issues early on. Following established codes and standards ensures consistency in inspection practices across various industries. By implementing effective quality control measures throughout the welding process, welders can deliver high-quality products that meet industry requirements and withstand rigorous use over time.
