Unveiling the Art of Precision: Mastering Cylindrical Grinding Techniques
Cylindrical Grinding Techniques: An In-depth Look into the Art of Precision
Introduction:
In the world of metalworking, precision is everything. From crafting intricate components for aerospace engineering to creating durable machinery parts, achieving precise dimensions is crucial. One technique that plays a significant role in achieving such accuracy is cylindrical grinding.
Cylindrical grinding involves removing material from the outer surface of a workpiece using an abrasive wheel. This process not only helps achieve precise dimensional tolerances but also imparts a smooth and polished finish to the final product. Let’s delve deeper into this art form and explore some of the techniques employed by modern blacksmiths.
Types of Cylindrical Grinding:
1. External Grinding:

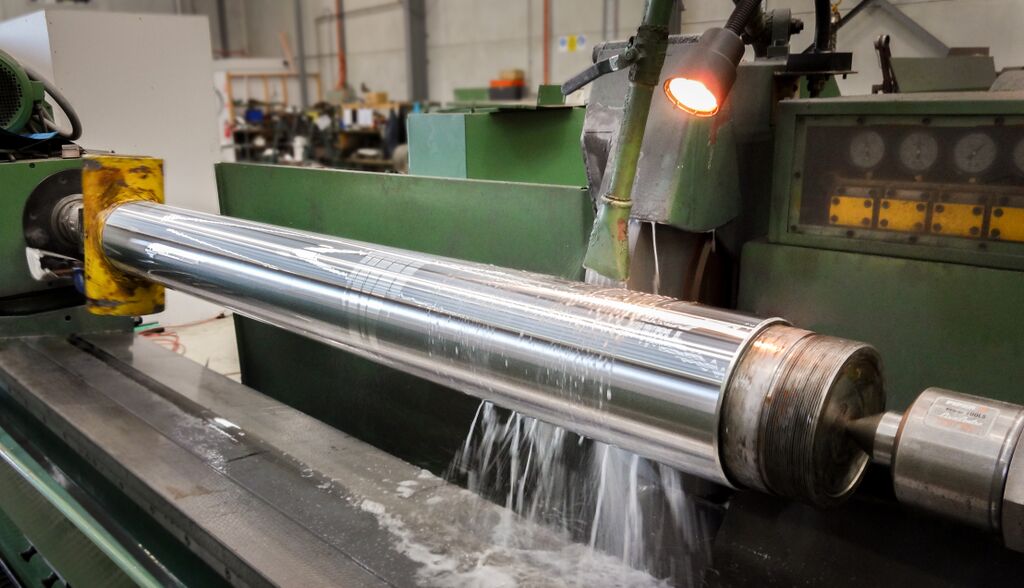

External grinding refers to the process of shaping the outer surface of a workpiece. It involves rotating both the workpiece and an abrasive wheel at high speeds while applying controlled pressure against it. This technique can be used to grind various materials, including steel, aluminum, and even ceramics.
2. Internal Grinding:
Internal grinding focuses on refining the internal diameter or bore of a workpiece. Unlike external grinding, where an abrasive wheel contacts the outside surface, internal grinding employs specialized tools that enter through one end and remove material from within.
3. Centerless Grinding:
Centerless grinding eliminates the need for centers or chucks to hold and rotate a workpiece during machining operations. Instead, centerless grinders use two wheels – one for holding the workpiece in place and another for actual cutting/grinding action – making it suitable for long and slender objects like shafts or tubes.
Techniques Used in Cylindrical Grinding:
1. Traverse Grinding:
Traverse grinding is one common technique used in cylindrical grinding processes wherein both wheels (workpiece-holding wheel and abrasive wheel) move simultaneously along their respective axes. This method ensures consistent removal rates across different sections of a workpiece.
2. Plunge Grinding:
Plunge grinding involves feeding the abrasive wheel directly into the workpiece, rather than traversing along its surface. This technique is effective for cylindrical grinding operations that require precise depth control or when dealing with delicate materials.
3. In-feed Grinding:
In-feed grinding is used to remove material in small increments along the length of a workpiece. By repeatedly plunging the abrasive wheel into the workpiece at predetermined intervals, this technique can achieve high precision and superior surface finishes.
4. Contour Grinding:
Contour grinding allows blacksmiths to create complex shapes or contours on a workpiece’s outer surface. By manipulating both the movement of the workpiece and abrasive wheel simultaneously, intricate profiles can be achieved.
Benefits and Challenges:
Cylindrical grinding offers several advantages over alternative metal removal processes:
– Precision: With modern advancements in machine technology, cylindrical grinders can achieve tolerances as low as 0.001mm, ensuring unmatched accuracy.
– Versatility: Cylindrical grinders are capable of handling various materials and geometries, making them highly versatile machines.
– Surface Finish: The process imparts a smooth finish on workpieces due to controlled abrasion.
However, there are challenges associated with cylindrical grinding as well:
– High Skill Requirement: Mastering cylindrical grinding techniques requires extensive training and experience.
– Costly Equipment: Acquiring and maintaining high-quality cylindrical grinding equipment can be expensive for individual blacksmiths or small-scale workshops.
– Heat Generation: The process generates significant heat during operation, which may cause thermal damage if not managed properly.
Conclusion:
Cylindrical grinding has long been an essential technique in metalworking industries due to its ability to deliver precise dimensions with excellent surface finish. From external to internal and centerless grinding methods, blacksmiths employ various techniques depending on their specific requirements.
While mastering this art form presents challenges such as skill acquisition and financial investment in equipment, it remains crucial for achieving exceptional levels of craftsmanship in modern blacksmithing. As technology continues to advance, we can expect further improvements in the precision and efficiency of cylindrical grinding techniques, making it an indispensable tool for metalworkers worldwide.
