Unleashing the Power of Carbon: The Key Role of Carbon Content in Tempering
The Role of Carbon Content in Tempering:
Tempering is a crucial heat treatment process that follows the quenching of metals to achieve desired properties such as increased toughness, hardness, and durability. The carbon content present in the metal plays a significant role in tempering, influencing the resulting mechanical properties.
Carbon is an essential element found in various types of steel and other alloys. It has a profound impact on the microstructure and overall performance of tempered materials. The carbon atoms can form different compounds with iron, like cementite (Fe3C), which contributes to the hardness and strength of steel.

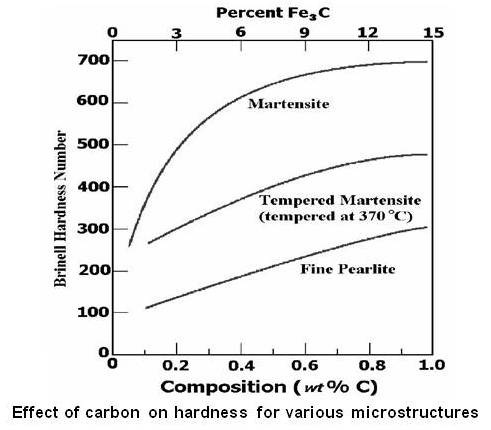

When it comes to tempering, the initial carbon content affects both the hardness and toughness achieved after heat treatment. Higher carbon content typically leads to harder but more brittle materials, while lower carbon content results in softer but more ductile ones.
For example, high-carbon steels are commonly used for tools or blades due to their exceptional hardness. However, these steels tend to be quite brittle and prone to cracking under high impact or stress loads. On the other hand, low-carbon steels are often preferred for structural applications where toughness is crucial.
Tempering Techniques for Stainless Steel:
Stainless steel is an alloy primarily composed of iron with varying amounts of chromium (usually above 10%) along with other elements like nickel and molybdenum. Tempering stainless steel aims at optimizing its corrosion resistance while maintaining reasonable strength characteristics.
The specific tempering technique applied depends on factors such as intended application, desired mechanical properties (hardness vs. toughness), and alloy composition.
One common method used for stainless steel tempering is called “stabilization annealing.” This technique involves heating the material below its critical temperature range (around 800-900°C) followed by controlled cooling. Stabilization annealing helps reduce residual stresses within the material and enhances its corrosion resistance by precipitating chromium carbides evenly throughout the matrix.
Another approach is “subcritical annealing,” where stainless steel is heated to a temperature between 650-750°C and then cooled slowly. This technique improves the material’s toughness while maintaining an acceptable level of hardness.
Tempering High-Speed Tool Steels:
High-speed tool steels are extensively used in cutting tools, such as drills, milling cutters, and taps, because of their excellent combination of hardness and wear resistance at high temperatures. Tempering high-speed tool steels requires precise control over the process parameters to achieve the desired properties.
Typically, these steels undergo multiple tempering cycles after quenching. The initial tempering is performed at relatively low temperatures (around 200-300°C) to relieve internal stresses generated during quenching without significantly affecting hardness.
Subsequent tempering cycles are conducted at higher temperatures (400-600°C) to refine the carbide structure within the steel matrix. These carbides provide increased wear resistance while maintaining adequate toughness for cutting applications.
Tempering Non-Ferrous Metals:
While ferrous metals like steel are most commonly associated with tempering, non-ferrous metals can also benefit from this heat treatment process. Non-ferrous alloys like aluminum, copper, brass, and bronze can be tempered to enhance specific properties based on their composition.
The tempering techniques for non-ferrous alloys differ from those used for ferrous materials due to variations in phase transformations and microstructural changes during heating and cooling processes.
For instance, aluminum alloys are frequently subjected to natural aging or artificial aging after solution heat treatment. Natural aging involves storing the alloy at room temperature for an extended period until precipitation hardening occurs gradually. On the other hand, artificial aging accelerates this process by heating the material at elevated temperatures (around 120-200°C) for shorter durations.
In both cases, precipitates form within the aluminum matrix that increases strength but may reduce ductility compared to the as-quenched condition.
Tempering Exotic Alloys like Titanium and Nickel-Based Superalloys:
Exotic alloys such as titanium and nickel-based superalloys are known for their exceptional high-temperature strength, corrosion resistance, and unique properties. Tempering these alloys requires careful consideration of specific heat treatment processes tailored to each material’s characteristics.
For titanium alloys, tempering is often performed after solution heat treatment or quenching to optimize mechanical properties. The temperature range used for tempering titanium varies depending on the alloy composition but typically falls between 450-650°C. Tempering at these temperatures allows for precipitation strengthening by controlling the size and distribution of alpha phase particles within the matrix.
Nickel-based superalloys also undergo a similar process called “age hardening” or “precipitation hardening.” This involves heating the alloy at elevated temperatures (around 900-1100°C) followed by controlled cooling. The resulting precipitates within the microstructure enhance strength, creep resistance, and high-temperature performance.
Tempering Methods for Cast Iron:
Cast iron is a group of iron-carbon alloys primarily containing carbon in excess of 2%. It offers excellent castability, wear resistance, and damping capacity. However, cast iron can be brittle in its as-cast state due to its unique microstructure.
Tempering cast iron aims to improve its toughness while maintaining desirable hardness levels based on specific applications. One popular method is called “malleablizing annealing,” where cast iron is heated above its critical temperature range (around 850-950°C) for an extended period followed by slow cooling in the furnace or air cooling.
This annealing process transforms the graphite flakes present in cast iron into nodular forms called “tempered graphite.” These nodules act as crack arrestors during loading conditions, effectively increasing fracture toughness without compromising other desirable properties like wear resistance.
Tempering Heat-Treated Aluminum Alloys:
Heat-treated aluminum alloys, commonly used in aerospace and automotive applications, can benefit from tempering to optimize their mechanical properties.
The tempering process for heat-treated aluminum alloys involves heating the material at temperatures between 120-200°C for a specific duration. This allows precipitation of strengthening phases, such as magnesium-silicide (Mg2Si), within the aluminum matrix.
The exact tempering conditions depend on the alloy composition and desired properties. For instance, 6061-T6 aluminum alloy is typically tempered at around 175°C for several hours to achieve a balance between strength and toughness.
Effects of Different Quenching Mediums on Tempering Results:
Quenching mediums not only influence the transformation behavior during quenching but also affect subsequent tempering results. The choice of quenchant can impact factors like hardness, microstructure refinement, residual stress relief, and dimensional stability after tempering.
Common quenchants include water, oil (such as mineral oil or fast quench oils), polymer solutions (polymer quenchants), salt baths, or air. Each medium has its advantages and limitations depending on material type and desired properties.
For example, water provides rapid cooling rates resulting in high hardness but may induce distortion or cracking due to excessive thermal stresses. Oils offer slower cooling rates compared to water but provide better control over temperature gradients during quenching.
Polymer solutions are often preferred when minimizing distortion is crucial since they offer slower yet uniform cooling rates that reduce thermal stresses. Salt baths provide even slower cooling rates while maintaining good control over surface oxidation and minimizing part distortion.
Tempering for Specific Applications: Automotive
In the automotive industry, various components undergo heat treatment processes like hardening followed by tempering to meet specific performance requirements.
For example, crankshafts require high strength along with good fatigue resistance due to high cyclic loading conditions. After hardening through processes like induction hardening or carburizing, tempering is performed to achieve the desired balance between hardness and toughness.
Similarly, gears used in transmissions or differential assemblies undergo heat treatment followed by tempering to enhance their wear resistance, strength, and durability. Tempering helps optimize the gear’s microstructure for improved performance under demanding operating conditions.
In summary, carbon content plays a crucial role in tempering as it affects the resulting hardness and toughness of metals. Various techniques are employed for different materials such as stainless steel, high-speed tool steels, non-ferrous metals, exotic alloys like titanium and nickel-based superalloys, cast iron, heat-treated aluminum alloys. The choice of quenching medium also influences tempering outcomes. Understanding specific applications like automotive allows for tailored tempering processes that meet specific performance requirements.
