Hardening and Tempering Steel: A Guide for Modern Blacksmiths
Hardening and Tempering Steel: A Guide for Modern Blacksmiths
Steel is a versatile and widely used material that forms the backbone of modern industry. It is strong, durable, and can be easily shaped into a wide range of products. However, raw steel lacks some critical properties such as hardness or toughness that are required in many applications. Hardening and tempering are two heat treatment processes that can improve these properties by altering the microstructure of steel.
In this article, we will explore what hardening and tempering are, how they work, their benefits, and how to perform them on steel.
What Is Hardening?
Hardening refers to a heat treatment process used to increase the hardness of steel. Hardness is the ability of a metal to resist deformation or scratching under an applied load. In general terms, harder metals are more brittle but less prone to wear than softer ones.
The hardening process involves heating the steel above its critical temperature (the temperature at which austenite forms) until it becomes fully austenitic or non-magnetic. The exact temperature depends on the type of steel being treated but usually ranges from 800°C to 1200°C.
Once heated, the steel is rapidly cooled down by quenching it in water or oil. Quenching rapidly cools down the metal so that it cannot return back to its original state before reaching room temperature; this results in a phase transformation from austenite (non-magnetic) into martensite (magnetic).
Martensite has an intricate crystal structure that gives it exceptional hardness but low ductility compared with other phases like ferrite or pearlite. Therefore, hardened steels tend to be brittle unless tempered afterward.
There are several methods for hardening steel:
1) Flame hardening – This method uses oxy-acetylene flames directed at specific areas of a workpiece followed by rapid cooling using water jets.

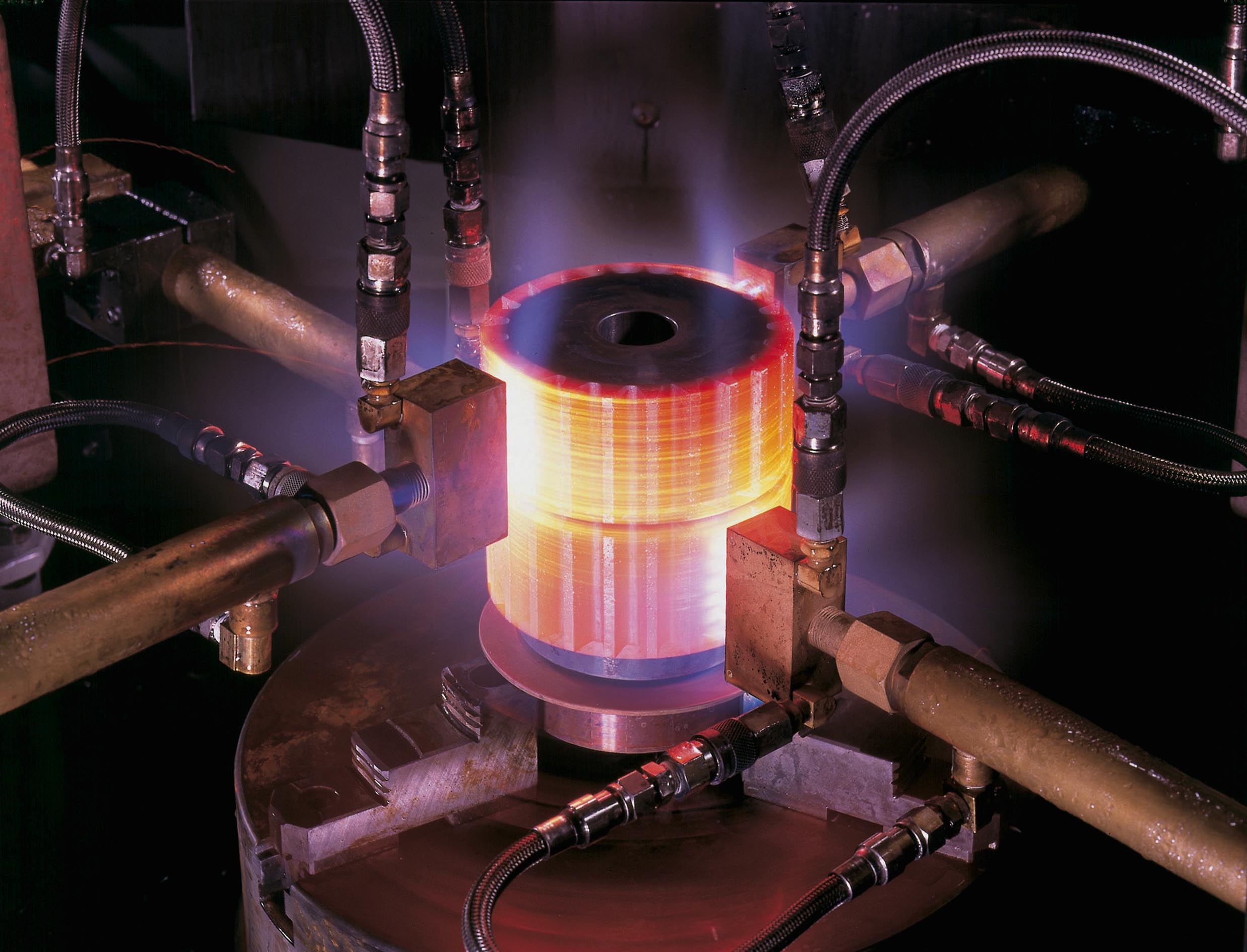

2) Induction hardening – This method uses an electromagnetic field to heat only the surface layer of a workpiece. The heated area is quickly quenched with water or oil.
3) Laser hardening – This method uses a laser beam to heat the steel surface, followed by rapid cooling.
However, most blacksmiths use the traditional procedure of heating and quenching in water or oil for their hardening process.
What Is Tempering?
Tempering is another heat treatment process used to improve the mechanical properties of hardened steel. In general, it refers to reheating martensitic steel at a lower temperature than that required for austenitization.
The tempering temperature varies depending on the desired outcome but typically ranges from 150°C up to 700°C. As tempered steel heats up, carbon atoms diffuse out from supersaturated martensite lattices and form iron-carbide (Fe3C) particles known as cementite; this results in softening of metal while retaining its strength and durability.
During tempering, martensitic microstructure changes into tempered martensite which has better ductility than hardened steels due to its reduced hardness levels. It also increases toughness and reduces brittleness making it more suitable for demanding applications such as automotive components or cutting tools.
There are four types of tempering:
1) Low-temperature tempering: involves heating between 150°C–250°C and produces high-strength steels with good wear resistance.
2) Intermediate-temperature tempering: involves heating between 350°C–500°C and produces medium-strength steels that are tough enough for machine parts.
3) High-temperature tempering: involves heating between 500°C–650°C and produces low-strength steels suited for structural components such as bridges or buildings.
4) Very-high-temperature tempering: involves heating above 650°C but is not commonly used because it causes grain growth and reduces material strength.
Benefits of Hardening and Tempering Steel
There are several benefits of hardening and tempering steel over using raw, unprocessed steel. These include:
1) Increased hardness – Hardened steels are more resistant to wear, deformation, or scratching.
2) Improved toughness – Tempered martensite is less brittle than hardened steels due to its reduced hardness levels.
3) Better machinability – Heat-treated steels are easier to machine as they have a predictable microstructure that can be manipulated for specific uses.
4) Enhanced corrosion resistance – Certain types of heat treatments such as nitriding can improve the corrosion resistance properties of metals.
How To Harden And Temper Steel
Now that we know what hardening and tempering are let’s talk about how you can perform them on your own.
To begin with, select the right type of steel for your project. Not all types of steel are equal, some may not even be suitable for heat treatment at all. For instance 400 series stainless steel cannot be hardened by standard quench-and-temper procedures because it has high amounts of chromium which forms carbides instead of martensite during cooling.
Once you have selected your desired metal alloy, clean it thoroughly before heating. This involves removing any debris or dirt by washing with soap water or degreaser solutions.
Next step is to heat up the metal alloy above its critical temperature until it becomes fully austenitic (non-magnetic). The exact temperature depends on the type of metal being treated but typically ranges from 800°C up to 1200°C depending on carbon content. Use a forge if possible but also portable torches like propane ones work well too.
After heating up above its critical temperature comes quenching; this rapidly cools down the metal so that it does not return back to its original state before reaching room temperature which results in a phase transformation from austenite to martensite. The cooling medium you select depends on the type of steel being treated as well:
1) Water – This is the most common quenching medium used for carbon steels. It provides fast and efficient cooling but can also cause severe warping or cracking due to its rapid temperature changes.
2) Oil – This is a slower quenching medium than water, which results in less distortion and cracking but still produces hard steel.
3) Air – This method allows the metal to cool down naturally without adding external heat; it’s primarily used for low-carbon steels that cannot be hardened by other methods.
After quenching, the metal will become very hard and brittle and needs tempering to achieve desired mechanical properties such as ductility, toughness, or machinability. The exact tempering temperature you use depends on what properties you want your final product to have.
To temper, place the metal back into an oven or forge at a lower temperature (below austenitization point). Typically this ranges between 150°C up to 700°C depending on your requirements and material type.
Leave it there long enough for complete diffusion of carbon atoms throughout its lattice structure before removing it from heat source completely allowing slow air-cooling process which helps prevent further stress cracks that may occur when rapidly cooled after heating above critical temperature during initial hardening process.
Conclusion
Hardening and tempering are two important processes in modern blacksmithing that can transform raw steel into robust materials with improved mechanical properties like hardness, toughness, or corrosion resistance. With proper knowledge of metallurgy principles plus right tools and materials selection anyone can perform these treatments themselves resulting in high-quality products built-to-last for years if not decades!
