Unlocking the Secrets of Heat Treatment: The Crucial Process in Modern Blacksmithing
Heat treatment is a crucial process in modern blacksmithing. It involves the controlled heating and cooling of metal to alter its physical and chemical properties, improving its strength, hardness, toughness, ductility, wear resistance or other desirable characteristics. In this article, we’ll explore the basics of heat treatment and explain the various techniques used by blacksmiths to transform raw metal into useful tools, weapons or decorative objects.
Before we delve into the details of heat treatment, let’s review some fundamental concepts related to metallurgy. Metals are composed of atoms that are held together by metallic bonds arising from their valence electrons. These electrons can move freely throughout the material due to their delocalization, which makes metals good conductors of electricity and heat. The arrangement of these atoms in a crystal lattice determines many of the physical properties of metals such as density, melting point or thermal expansion coefficient.
Metals can also contain impurities such as carbon or alloying elements like chromium or nickel that modify their composition and behavior. For instance, carbon is often added to iron to produce steel with higher hardness and tensile strength than pure iron. However, too much carbon can also make it brittle and prone to cracking when subjected to stress.
Now that we know what metals are made of let’s see how they respond when heated up or cooled down rapidly or slowly.
The three stages
Heat treatment typically involves three main stages: heating (or austenitizing), quenching (or rapid cooling) and tempering (or slow reheating). Each stage has different effects on the metal structure:
– Heating: When a metal is heated above its critical temperature (the specific temperature depends on its composition), it undergoes a phase transformation from its crystalline state into an austenitic phase with a face-centered cubic (fcc) structure where all atoms occupy octahedral sites surrounded by 12 neighbors at equal distances.
This transition occurs because energy is added to the metal atoms, causing them to vibrate more and overcome their lattice resistance. However, this process alone does not improve the metal’s properties since austenite is soft and ductile but lacks strength and hardness.
– Quenching: To harden the material, blacksmiths need to cool it down rapidly from its austenitic phase into a martensitic phase—a metastable structure with a body-centered tetragonal (bct) lattice where carbon atoms are trapped inside iron atom interstices. This cooling rate needs to be fast enough for the crystallographic transformation to occur before any significant diffusion can take place.
The rapid cooling causes an internal stress that puts pressure on the crystal structure. When quenching stops, this high-pressure state remains locked in place, creating a strong yet brittle material. The brittleness of martensite occurs because of high internal stresses – if these stresses exceed the ultimate tensile strength of the material, they cause it to crack or fracture.
– Tempering: To reduce brittleness while maintaining most of its hardness and strength, blacksmiths perform tempering by reheating (or annealing) their metal at lower temperatures than their critical one for extended periods.
This reheating allows some carbon molecules in martensite to escape from their tetrahedral sites and diffuse across grain boundaries. By doing so, they create clusters called cementites or carbides that impede dislocation movement within grains during deformation processes like machining or forging.
This reduces internal stress due to volume changes caused by formation or removal of these carbides and improves ductility by making it easier for dislocations to move through grains instead of being blocked by them.
Heat treating techniques
Now let’s take a closer look at some common heat treatment techniques:
1) Annealing: Annealing involves heating up metal above its critical temperature then allowing it cool slowly inside a furnace until room temperature is reached. This technique is used to relieve internal stresses after forging, rolling or welding operations which can cause deformations and cracks in the material.
2) Normalizing: Normalizing involves heating up metal above its critical temperature then allowing it cool inside still air until room temperature is reached. This technique is similar to annealing but results in a harder, more homogeneous structure by eliminating any thermal gradients that might have formed during cooling.
3) Hardening: Hardening involves heating up metal above its critical temperature then quenching it rapidly in water, oil or air to create martensite. The type of quenchant chosen depends on the composition and thickness of the material as well as other factors like desired hardness, distortion risk or surface quality.
4) Tempering: Tempering involves reheating hardened steel below its critical temperature (usually between 200-700°C depending on desired properties) for several hours before letting it cool down slowly. This process reduces internal stress while maintaining most of the hardness and strength obtained from hardening.

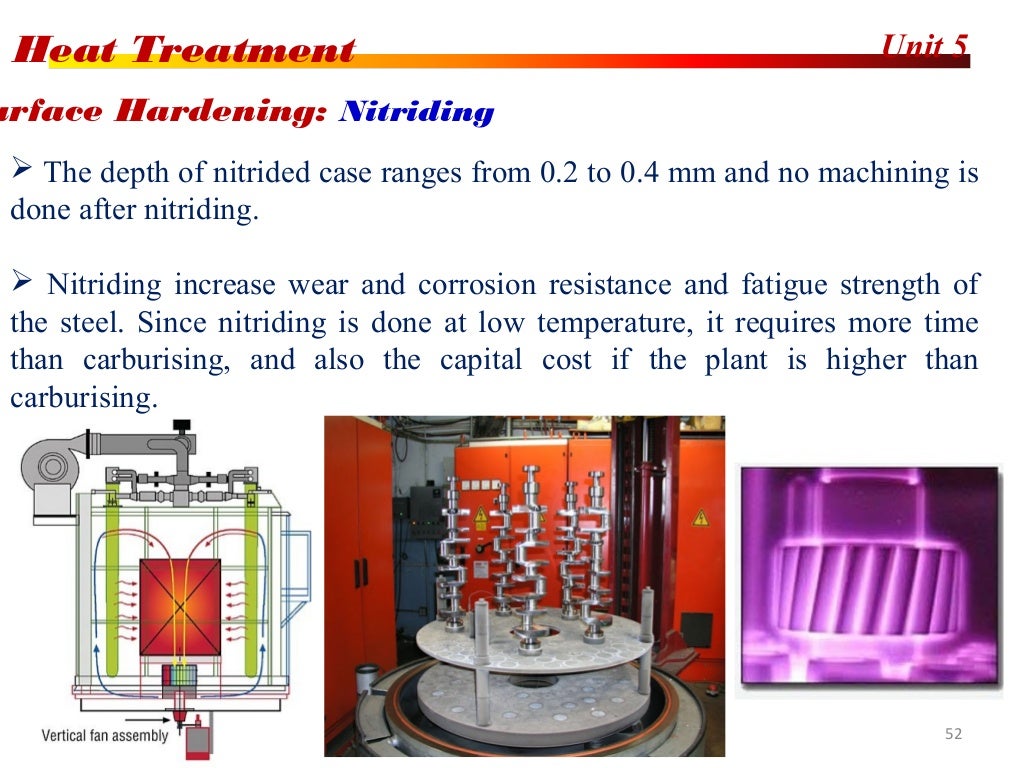

5) Case hardening: Case hardening (or surface hardening) involves modifying only the outer layer of a metal object to increase its wear resistance without affecting its core properties. There are many case-hardening techniques such as carburizing, nitriding or boronizing that involve introducing carbon, nitrogen or boron atoms into the surface layer through diffusion processes.
Factors influencing heat treatment
Heat treatment outcomes depend on various factors such as:
1) Composition: Each alloy has unique chemical and physical properties that affect how it responds to heat treatment. For example, high-carbon steels need longer soaking times at higher temperatures than low-carbon steels due to their slower austenitization kinetics.
2) Shape and size: The geometry of a part affects how evenly heat is distributed throughout its volume during heating and cooling phases. Thin parts cool faster than thick ones because they have less mass to retain heat, which can lead to warping or cracking. The same applies to non-uniform shapes like corners or edges that tend to cool faster than flat surfaces.
3) Quenchant: The speed of the cooling process is determined by the type and temperature of the quenching medium used. Water cools faster than oil, while air cools slower than both but can cause oxidation or scaling on the surface.
4) Heat treatment equipment: Different types of furnaces or ovens may provide different heating rates and atmospheric conditions that affect austenitization and tempering processes. Some materials also require specialized equipment such as vacuum furnaces for precise control of gas composition, pressure and temperature.
5) Quality control: Heat treatment outcomes need to be verified through testing methods like hardness testing (Rockwell, Brinell), metallographic analysis (optical microscopy, electron microscopy), tensile strength measurements or impact tests.
Safety precautions
Heat treating metals can be dangerous if proper safety precautions are not taken. Here are some guidelines blacksmiths should follow:
1) Wear protective gear such as gloves, goggles and aprons when handling hot metal objects.
2) Use proper ventilation systems in work areas where heat treatment is performed since burning fuels produce toxic fumes like carbon monoxide or nitrogen oxides that can cause health problems if inhaled excessively.
3) Be aware of fire hazards associated with high-temperature operations like welding, grinding or cutting near flammable materials.
4) Follow safe procedures when working with quenchants since they can ignite easily if exposed to an open flame or a spark source.
Conclusion
Heat treatment is a critical skill for modern blacksmiths who want to transform raw metal into functional tools, weapons and decorative objects. By controlling heating rates and quenching media during austenitizing and hardening phases followed by reheating during tempering phase – blacksmiths can modify material properties such as hardness, strength, ductility and wear resistance to meet specific requirements for their projects. To achieve optimal results, blacksmiths must consider factors like composition, shape and size of materials being treated along with the type of quenchants used and quality control methods employed. By following safety guidelines and best practices in heat treatment – blacksmiths can create high-quality products that will last generations.
