Master the Art of Metal Casting: A Guide for Blacksmiths

Metal Casting Techniques for Blacksmiths: A Guide

As a blacksmith, you may find yourself drawn to the art of metal casting. Metal casting allows you to create more intricate shapes and designs than traditional forging methods, opening up a world of possibilities. In this article, we’ll explore the basics of metal casting techniques for blacksmiths.

What is Metal Casting?

Metal casting is the process of pouring molten metal into a mold to create a specific shape or design. The mold can be made from various materials such as sand, plaster, or ceramic. Once the metal has cooled and solidified in the mold, it can be removed and finished according to your desired specifications.

Types of Metal Casting

There are several types of metal casting techniques that are commonly used by blacksmiths:

1. Sand Casting – This is one of the most popular forms of metal casting because it’s relatively easy and inexpensive. Sand molds are created by packing sand around a pattern that’s been carved out of wood or another material. Once the sand has been packed tightly around the pattern, molten metal is poured into it.

2. Investment Casting – This type of casting uses wax patterns instead of wooden ones. The wax patterns are coated with ceramic material several times until they’re thick enough to withstand high temperatures without melting or breaking down.

3. Die Casting – This method involves injecting molten metal under high pressure into steel molds called dies.

4. Centrifugal Casting – Centrifugal force is used to distribute molten metal evenly inside a spinning mold.

5. Continuous Casting – Molten steel is continuously poured through a water-cooled mould that solidifies it into long lengths before being cut down into smaller pieces.

Choosing Your Method

The choice between these different methods will depend on what you want to achieve with your project as well as your budget and skill level as some methods require more experience than others do.

Equipment Needed

Before you begin, it’s essential to have the right equipment for metal casting. Here are some of the things you’ll need:

1. Furnace – A furnace is required to melt the metal.

2. Crucible – The crucible is used to hold and pour molten metal into molds.

3. Molds – Molds can be made from various materials like sand, ceramic, or plaster.

4. Tongs – Tongs are useful for handling hot objects safely.

5. Protective Gear – You will need protective gear such as gloves, aprons and eye protection when working with molten metals

6. Flux – Flux is a substance that’s added to molten metal to help remove impurities and prevent oxidation.

Preparing Your Workspace

Safety should be your top priority when preparing your workspace for metal casting projects. Make sure that your work area is well-ventilated so that fumes don’t accumulate in the air around you while melting the metal.

Another thing that’s important before starting any project involving molten metals is ensuring all tools are clean and free from debris or rust which could contaminate the final product or damage equipment during use if not properly cared for beforehand.

Mold Preparation

Once you’ve chosen your method of casting and gathered all necessary equipment, it’s time to prepare your mold according to its specific requirements—for example, sand molds must be packed tightly around patterns carved out of wood whereas investment casts require several coats of ceramic material applied over wax patterns until they’re thick enough not only withstand high temperatures but also resist cracking under pressure too!

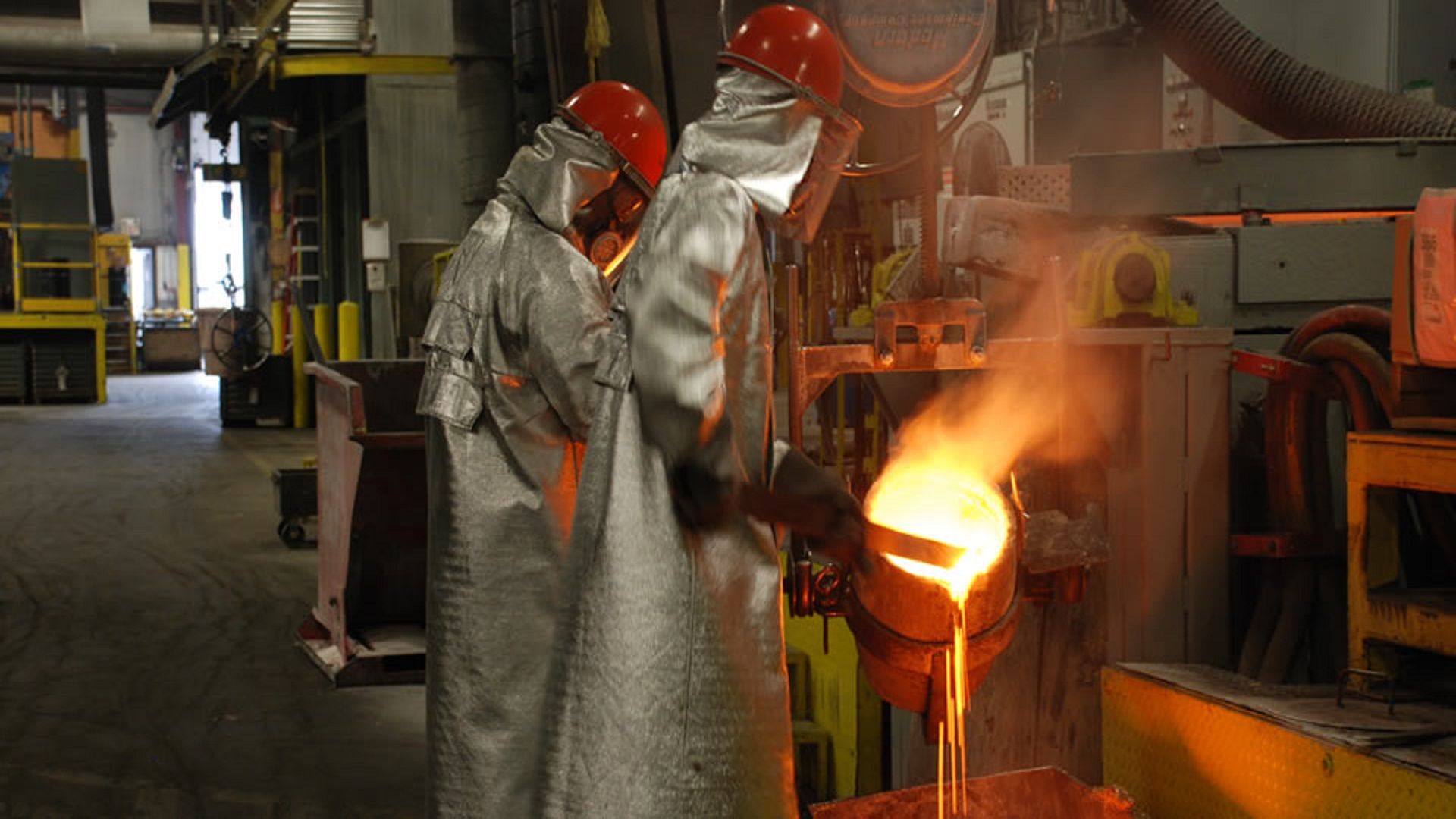

Pouring Molten Metal Into Your Mold

When pouring molten metals into a mold after heating them up in a furnace or crucible heated by gas burners (depending on what type of fuel source) make sure there’s no moisture present inside which could cause steam explosions leading either injury or damage so always check surfaces carefully before getting started!

It’s important to remember that the metal will solidify quickly once it’s poured into the mold, so you need to work quickly and carefully. Once your metal has cooled completely, you can remove it from the molds and finish it according to your specifications.

Conclusion

Metal casting is an exciting way for blacksmiths to expand their skill set and create intricate designs that would be impossible with traditional forging methods alone. With the right equipment, workspace preparation, and understanding of different techniques available such as sand casting or investment casting then there’s no limit what any dedicated craftsman can achieve!
