Blast Furnaces: The Powerhouse of Steel Production
Blast furnaces have been used for centuries in the production of iron and steel. They are large, complex structures that use extremely high temperatures to melt raw materials such as iron ore, coke, and limestone into molten metal. In this tutorial-style post, we will discuss the basics of blast furnaces and how they work.

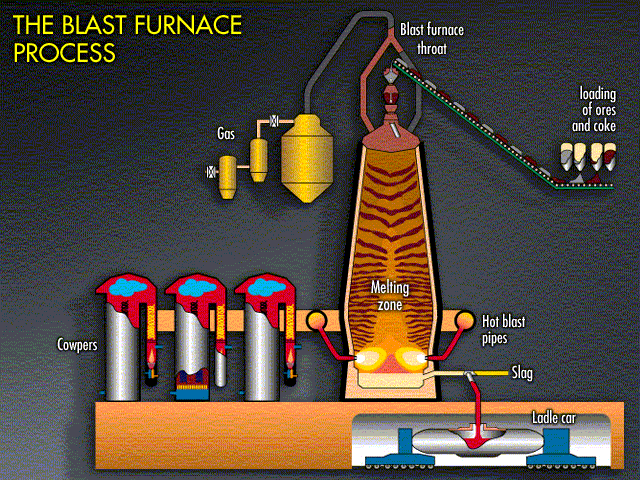

Firstly, it is important to understand the structure of a blast furnace. The furnace itself is a tall cylindrical tower made of steel plates and lined with heat-resistant bricks. It has three main sections: the hearth at the bottom where the molten metal is collected; the stack above the hearth which contains layers of raw materials; and finally, a series of pipes called tuyeres which allow air to enter from below.
The process starts with loading raw materials into the top section or “charging.” A typical charge consists of 70% iron ore (in pellet form), 20% coke (a type of coal), and 10% limestone. These ingredients are carefully measured before being poured into separate layers through hoppers on top of each other.
Once charging is complete, hot air is blown into tuyeres located at various levels in succession by means of compressed air blowers from beneath them. This causes chemical reactions that produce carbon monoxide gas which reacts with iron oxide present in pellets producing carbon dioxide gas leaving behind pure Iron also known as Pig Iron
As hot gases rise through each layer they react with minerals and impurities reducing them to their elemental forms while melting ferrous material like iron Ore pellets forming liquid pig iron which settles down on base/ hearth part where it can be drawn off periodically via tap hole near base area using drain out channels or ladles once sufficient quantity has accumulated during operation.
It’s worth noting that blast furnaces require massive amounts of energy to operate efficiently due to their sizeable nature – typically requiring thousands upon thousands cubic meters per hour flow rate of air and fuel to maintain the right temperature. This is why they are often located near large power plants or other industrial facilities that can supply them with the necessary heat energy.
In conclusion, blast furnaces are critical components of modern steel production, providing a cost-effective way to transform raw materials into high-quality metal products for use in construction, automotive, transportation, and many other industries. Although complex and challenging to operate, these structures have been perfected over centuries through technological advances and innovative engineering solutions making it one of the most important tools used by blacksmiths worldwide.
