Unlock the Secrets of Nitriding: A Modern Blacksmith’s Guide to Improved Metal Products
Nitriding Process: An Overview for Modern Blacksmiths
As a modern blacksmith, understanding different methods of heat treatment is crucial in producing high-quality metal products. One such process that you may come across in your work is nitriding. Nitriding is a surface hardening process that involves the absorption of nitrogen into the surface layer of steel to improve its wear resistance, fatigue strength, and corrosion resistance. In this article, we will take an in-depth look at the nitriding process, its benefits and limitations.
Types of Nitriding Process
There are three main types of nitriding processes: gas nitriding, plasma nitriding, and salt bath nitriding. Each type has its unique advantages and disadvantages.

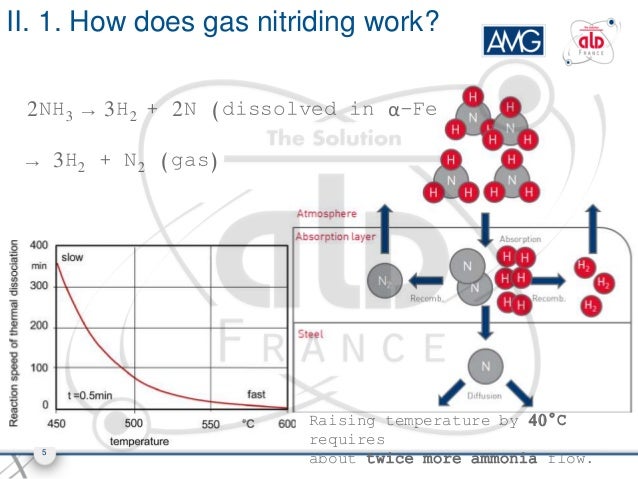

Gas Nitriding
This method involves exposing the steel part to ammonia gas at high temperatures between 495°C-565°C (923°F-1049°F). The ammonia dissociates into nitrogen and hydrogen atoms which react with iron compounds on the steel’s surface to form a hard compound known as iron-nitride (Fe3N). Gas nitrided parts have excellent wear resistance due to their high surface hardness which ranges from 600-1200 HV. Additionally, they exhibit improved fatigue strength and corrosion resistance compared to untreated metals.
Plasma Nitriding
Plasma nitriding uses ionized gas or plasma to provide energy for nitrogen ions bombardment onto the metal’s surface. This results in faster diffusion rates than conventional methods such as gas or salt bath nitridings since it can achieve higher temperatures up to 1100°C (2012°F) while still maintaining low-pressure conditions around 10^-1 Torr. Plasma-nitrided parts also show good wear resistance properties but have better uniformity throughout the treated area due to more precise temperature control during processing.
Salt Bath Nitriding
In this method, steel parts are immersed in molten salt baths containing cyanide salts at approximately 570°C (1058°F). Nitrogen is then diffused into the steel surface to form iron nitride. Salt bath nitriding has been used for many years, and it is well established in the industry due to its low cost and ability to treat complex geometries. However, it has some drawbacks such as poor control of the nitrided layer thickness, potential hydrogen embrittlement problems, and environmental concerns.
Benefits of Nitriding Process
Nitriding offers several benefits that make it a popular choice among modern blacksmiths. Some of these benefits include:
– Improved wear resistance: Nitrided parts exhibit high surface hardness which improves their wear resistance.
– Increased fatigue strength: The process also helps improve the metal’s fatigue strength by reducing stress concentrations on the surface.
– Corrosion resistance: Nitrided parts have better corrosion resistance compared to untreated metals due to their improved microstructure.
– Low distortion rates: The process does not cause significant dimensional changes in treated parts which makes it suitable for precision components.
Limitations of Nitriding Process
While nitriding offers numerous advantages, there are still some limitations that modern blacksmiths should be aware of:
– Limited depth penetration: The depth of nitrogen diffusion is limited depending on factors such as temperature, time, gas composition or plasma density.
– Surface preparation requirements: Proper surface preparation is essential before nitriding since any contaminant can negatively affect the quality of results achieved during processing.
– Environmental safety concerns: Some methods like salt bath nitriding use cyanide salts which pose serious health risks if mishandled.
Conclusion
Nitriding is a versatile heat treatment process that provides excellent improvements in wear and corrosion resistance while maintaining good dimensional stability. Each method has its unique advantages and disadvantages that should be carefully considered when selecting an appropriate technique for specific applications. Modern blacksmiths who want to achieve optimum performance from their metal products can benefit from understanding how this process works and what considerations to keep in mind when using it.
